METSO AUTOMATION V-Port Segment Control Valve with QP1C/S14 Quadra-Powr II Pneumatic Actuator & NE724/US1 Positioner
METSO AUTOMATION

V-Port Segment Control Valve with QP1C/S14 Quadra-Powr II Pneumatic Actuator & NE724/US1 Positioner

SKU: 157720
Price:
$1,250 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

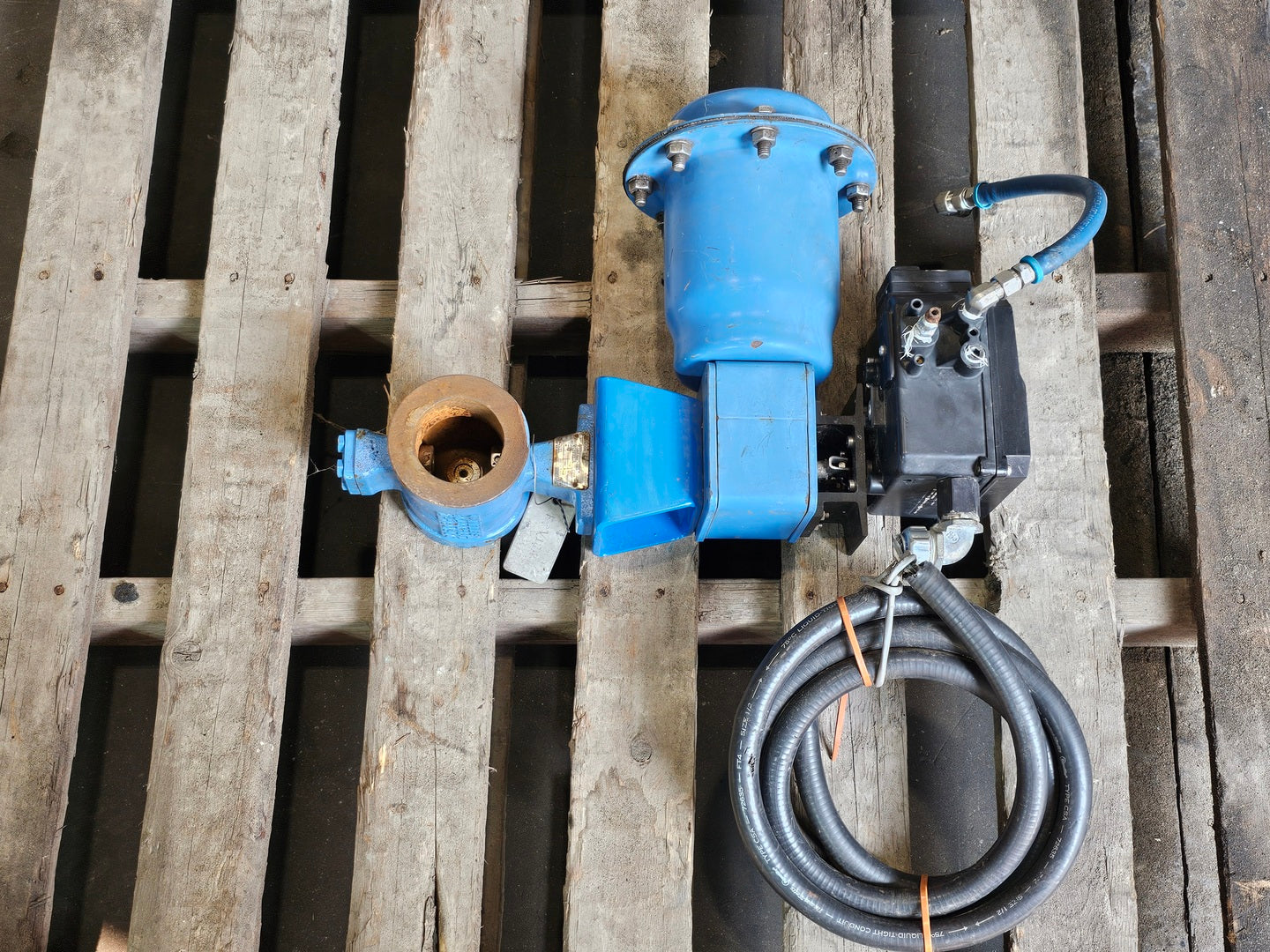

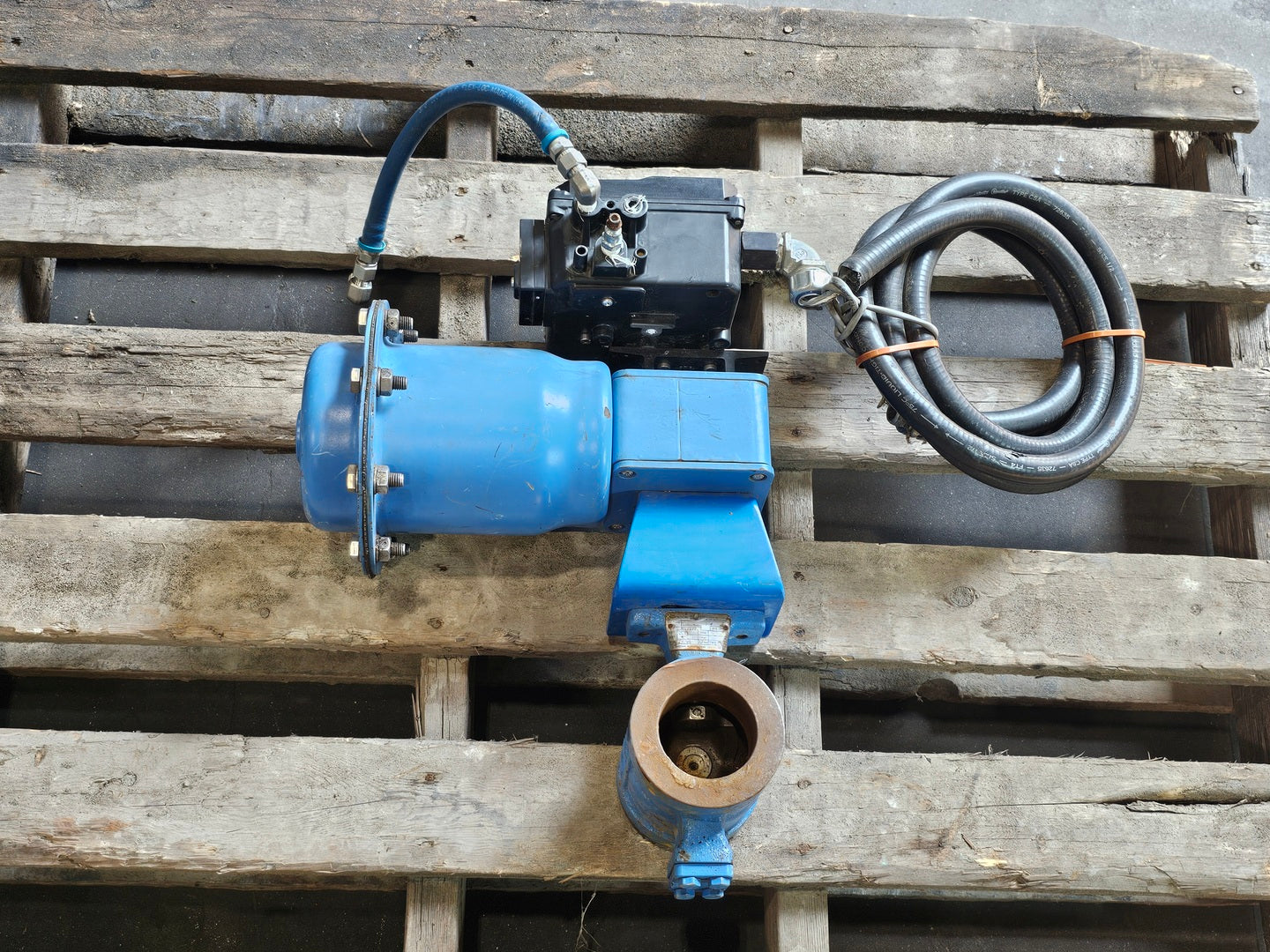

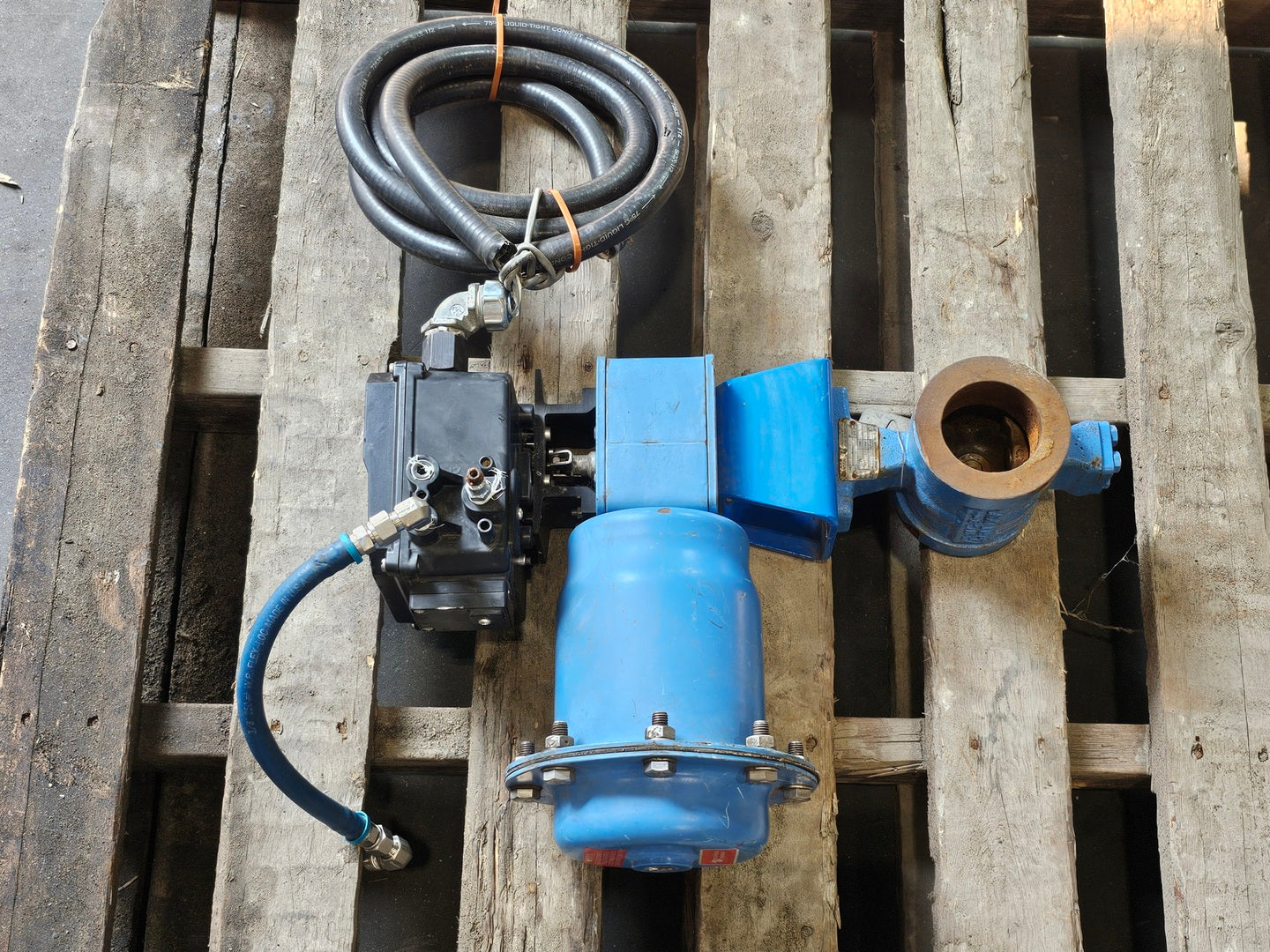

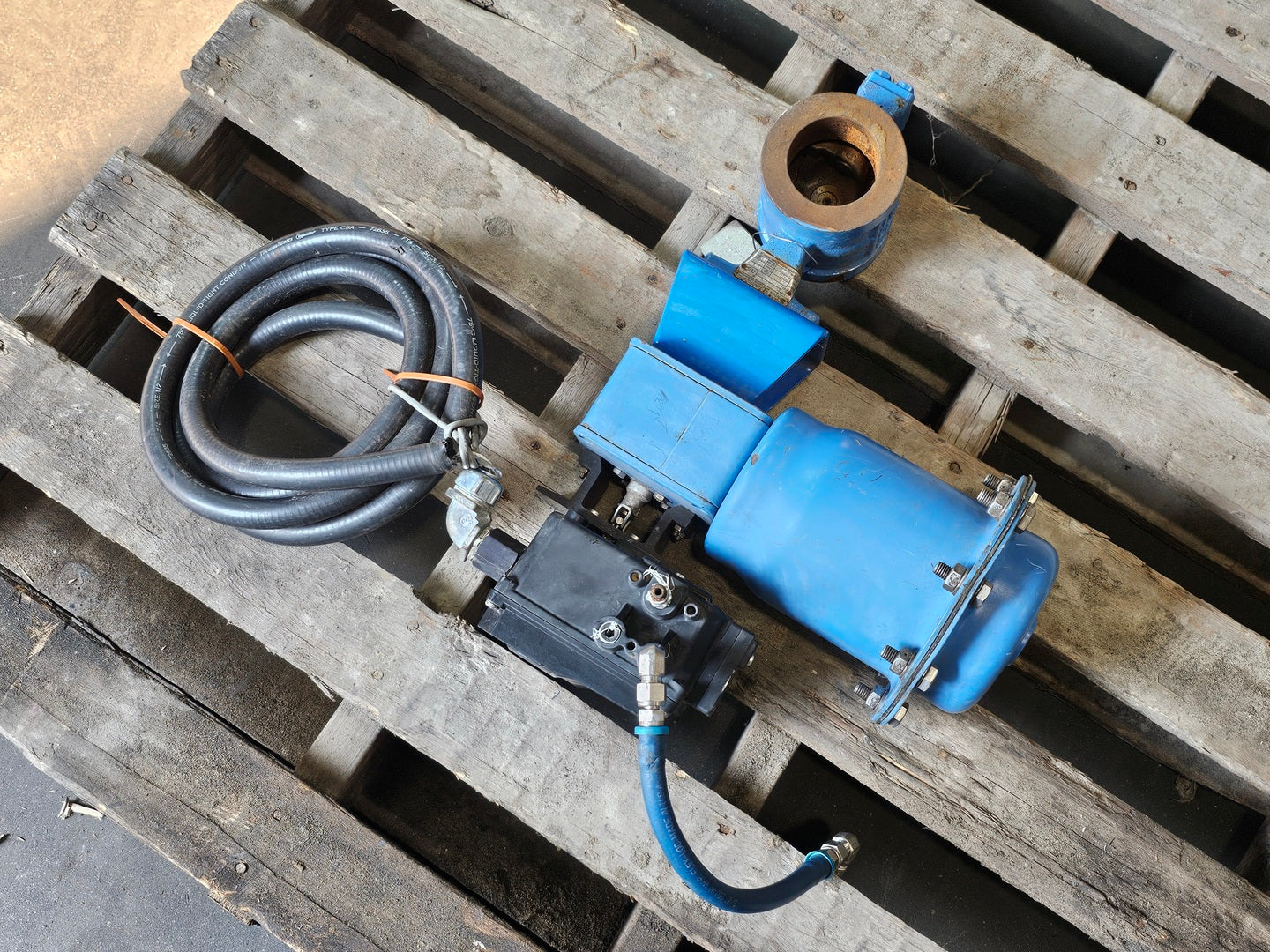

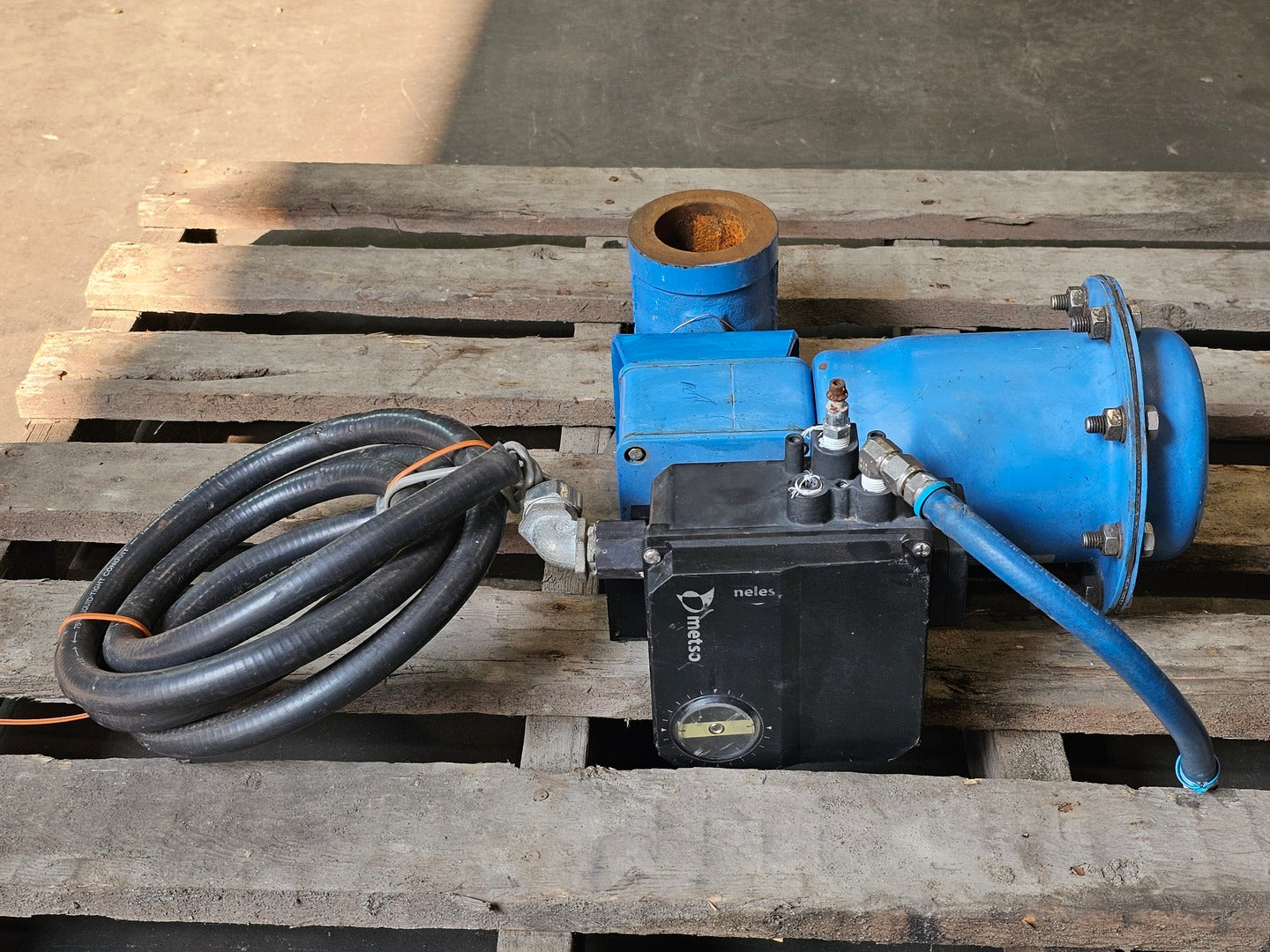

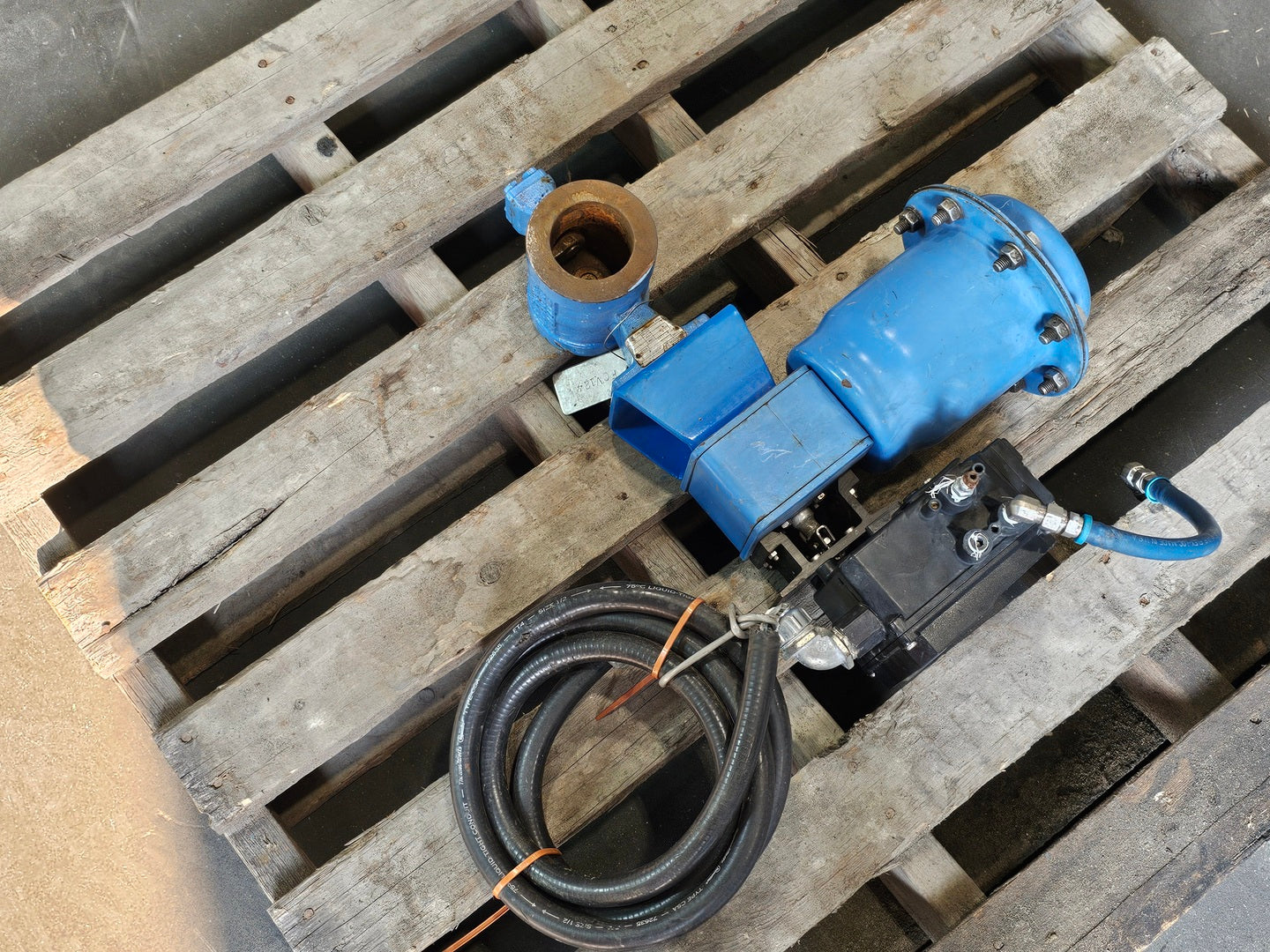

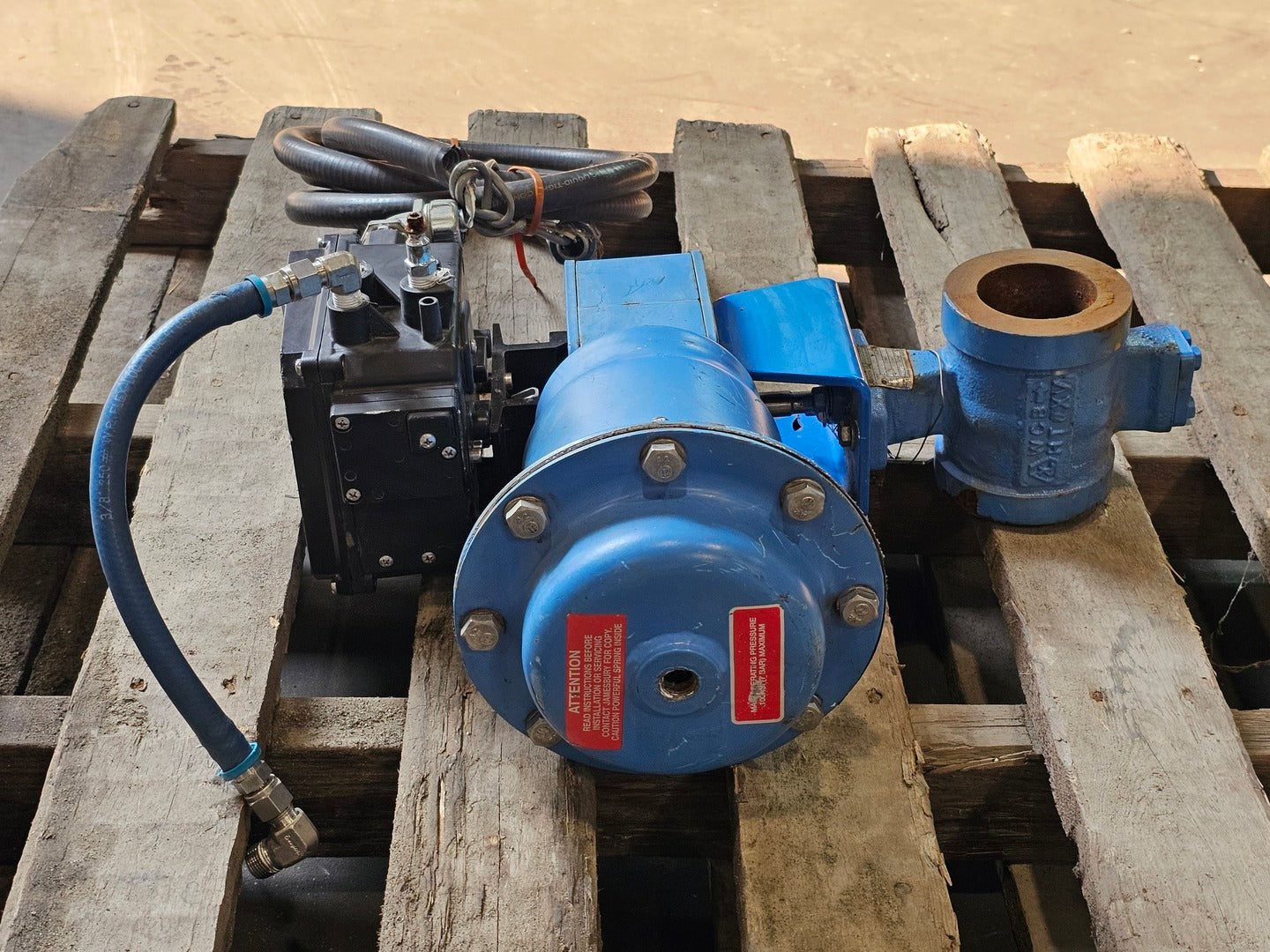

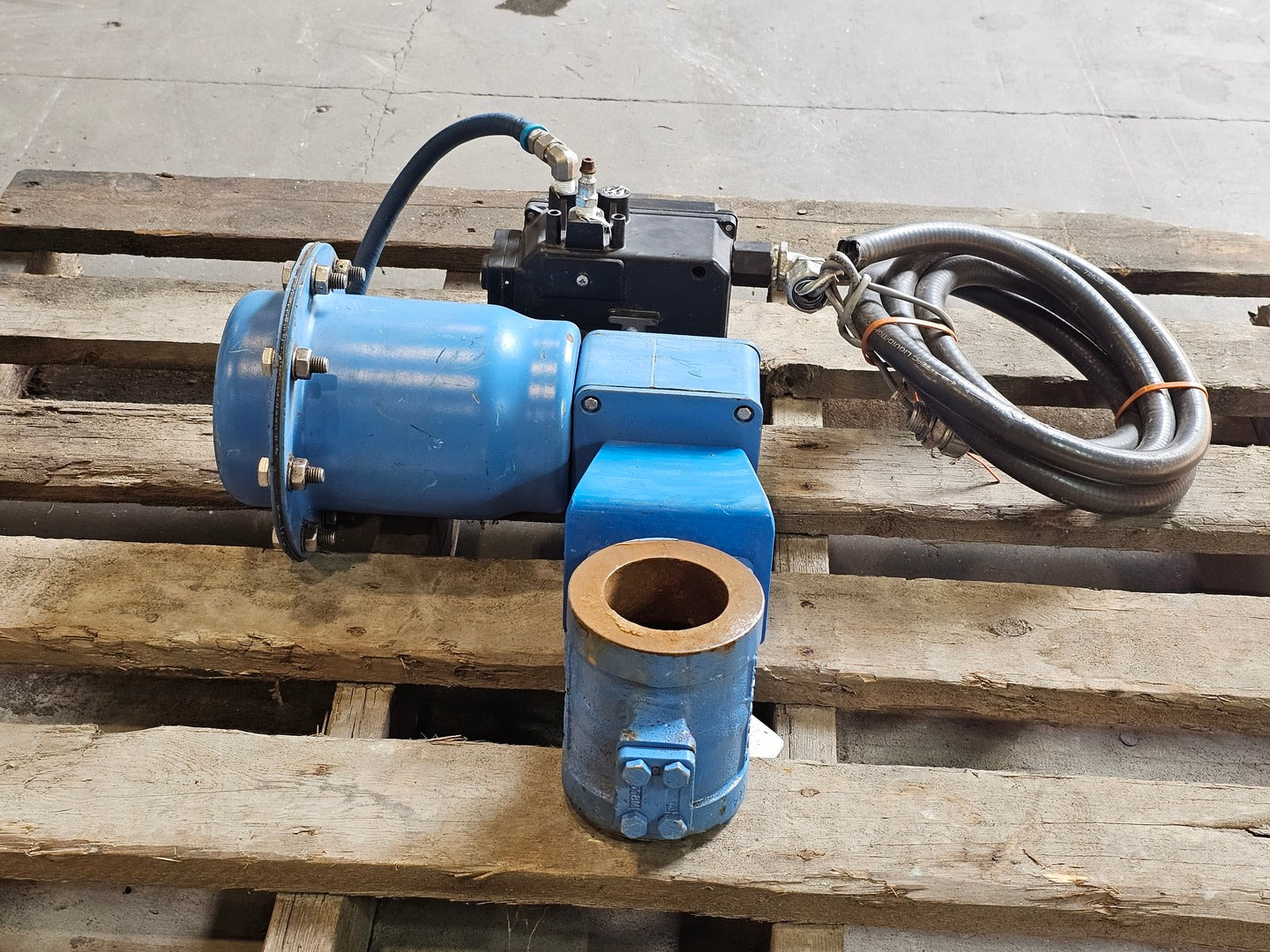

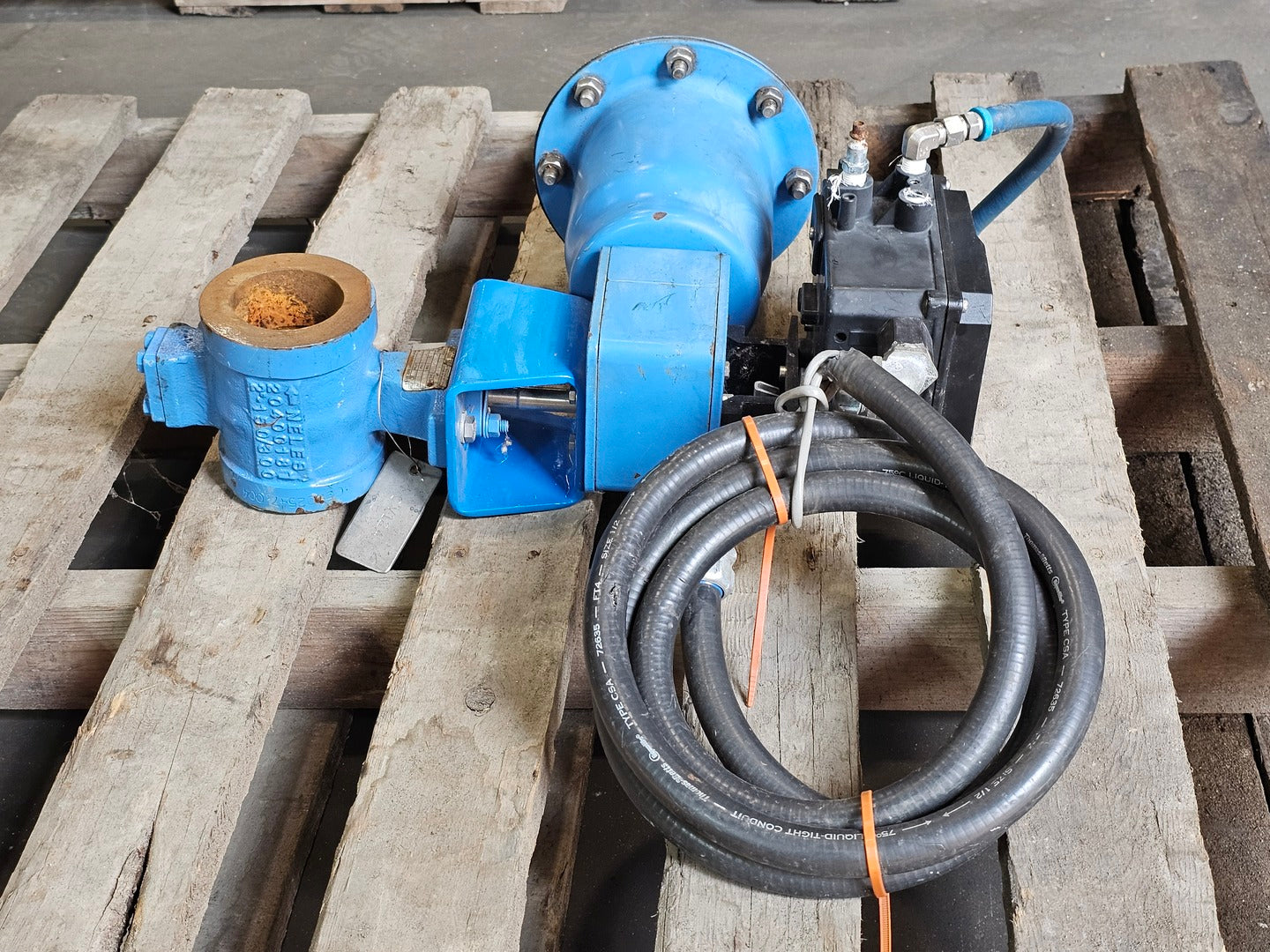

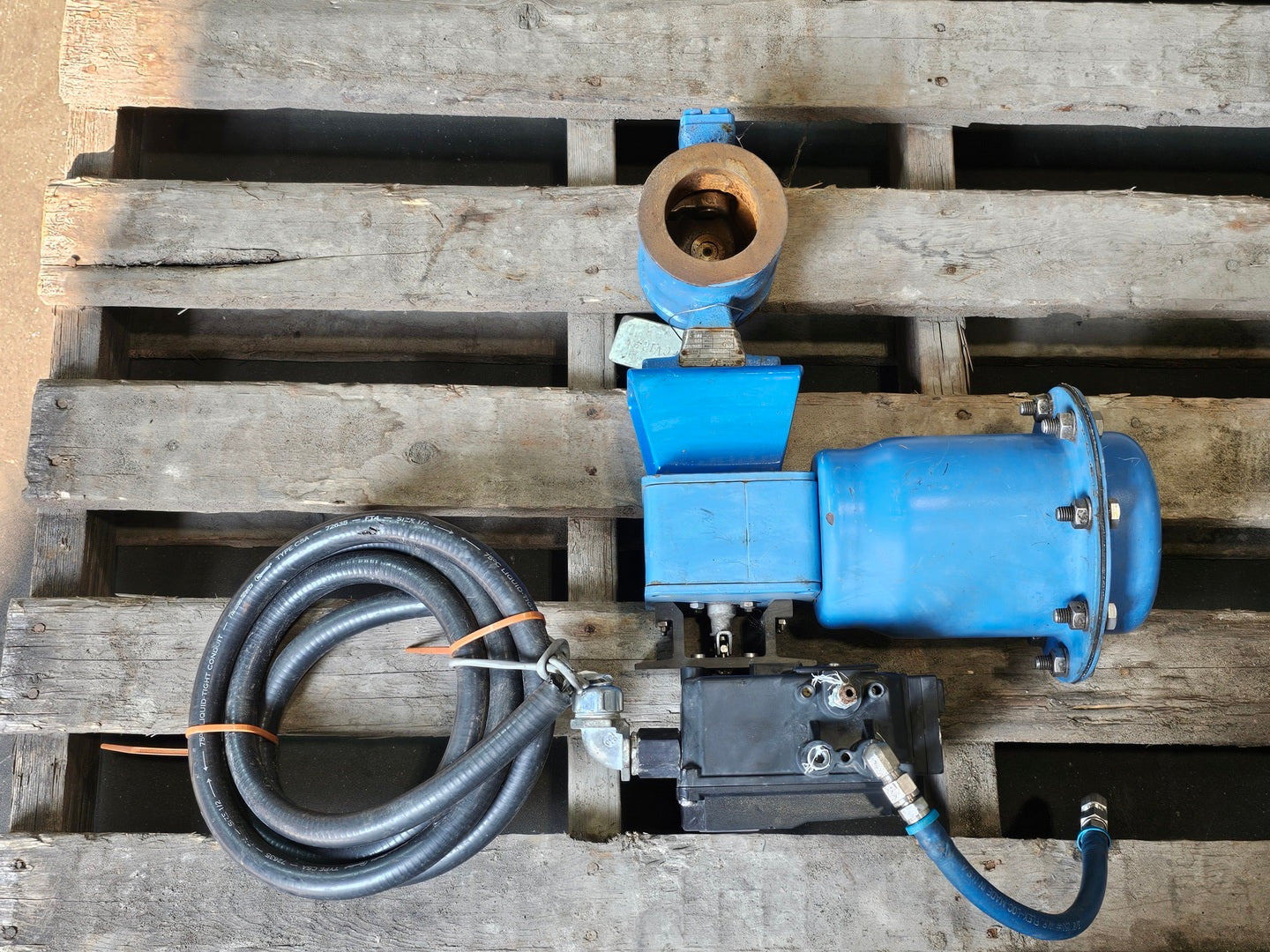

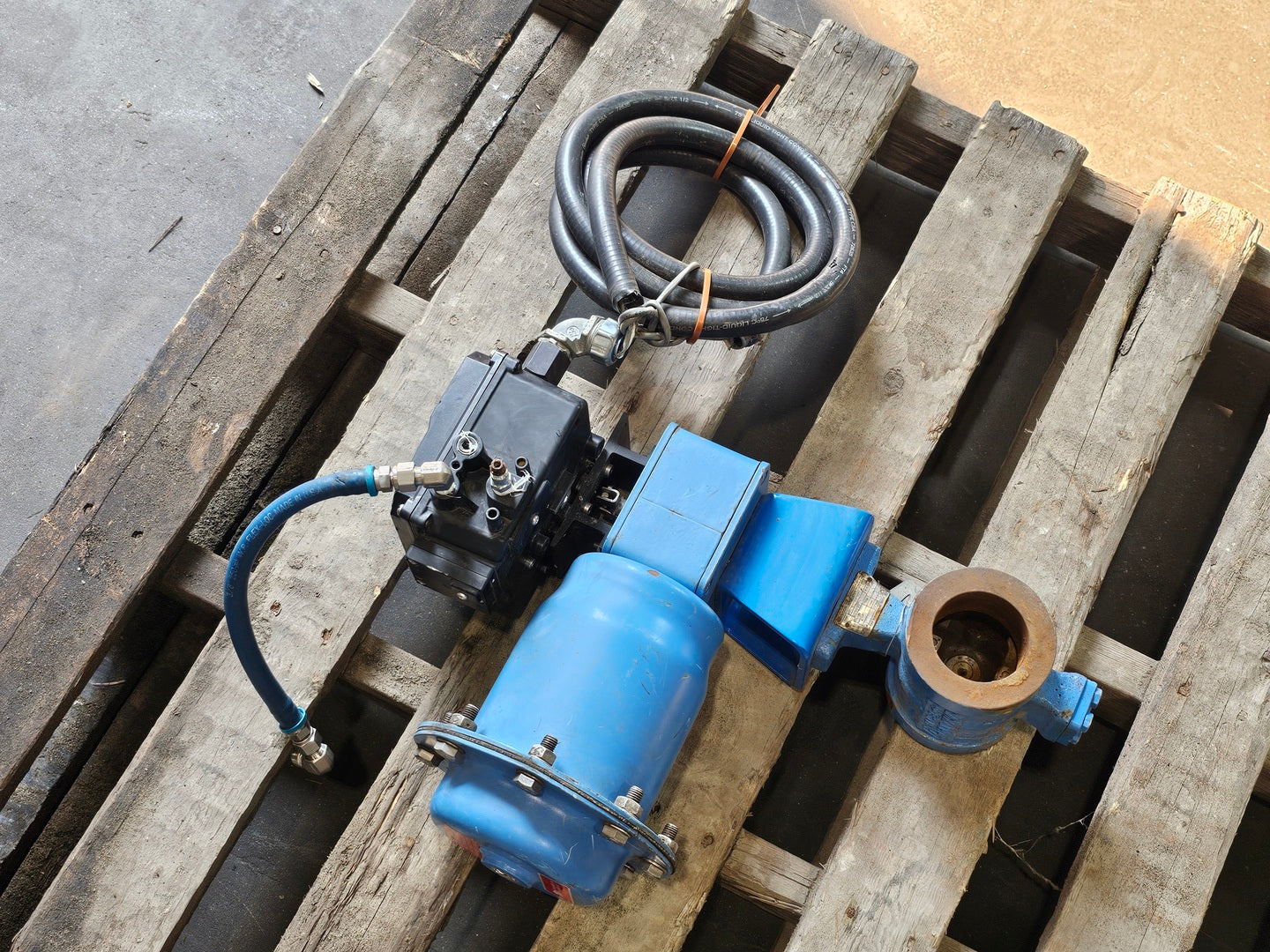

Metso/Neles R-Series rotary V-port segment control valve assembly equipped with a Neles Jamesbury Quadra-Powr II QP1C/S14 spring-return pneumatic actuator and Neles NE724/US1 electro-pneumatic positioner. The positioner accepts a 4-20 mA or 0-20 mA DC control signal. The assembly includes attached pneumatic tubing and hoses.
Condition Used
Other Specifications

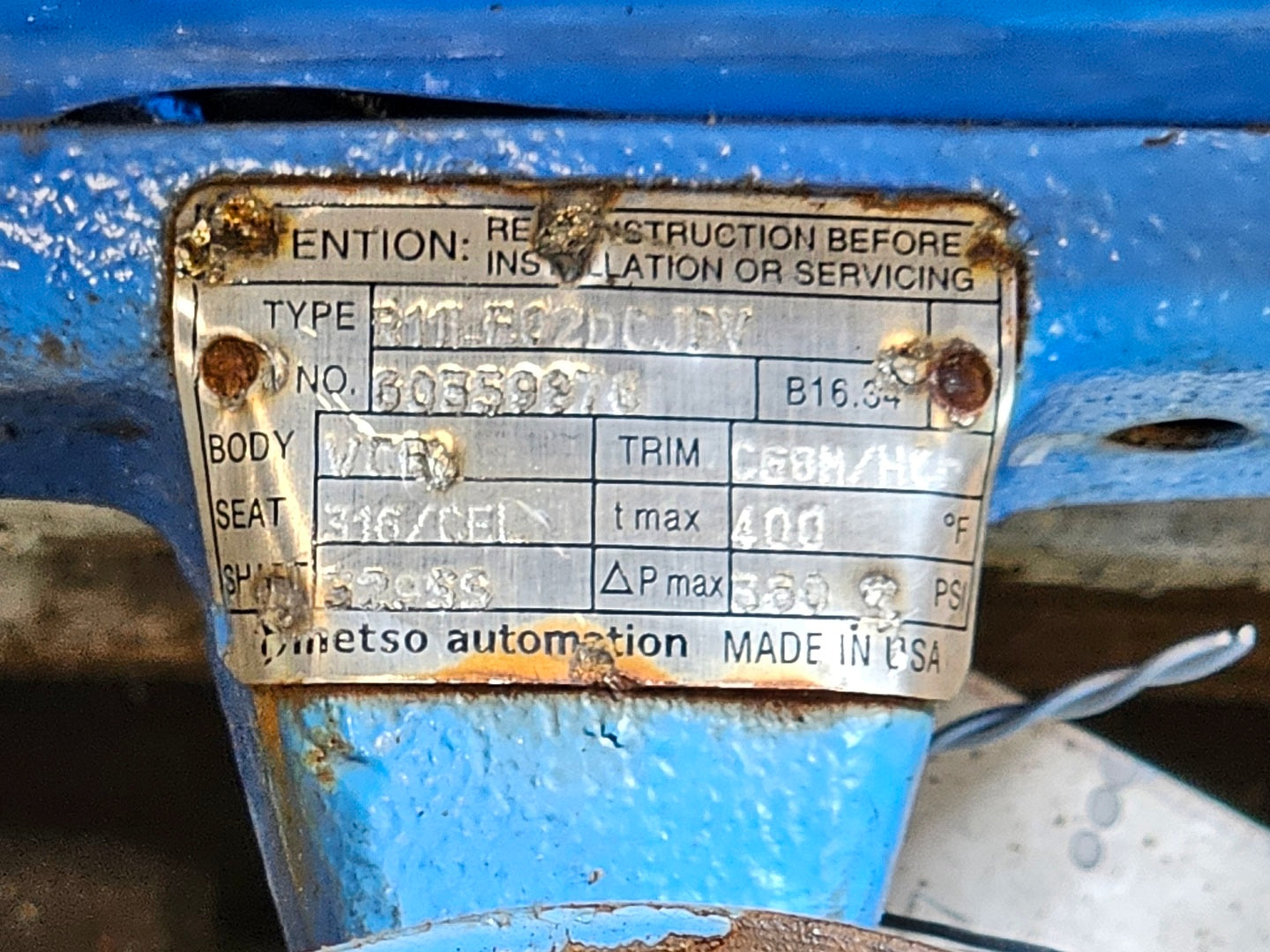

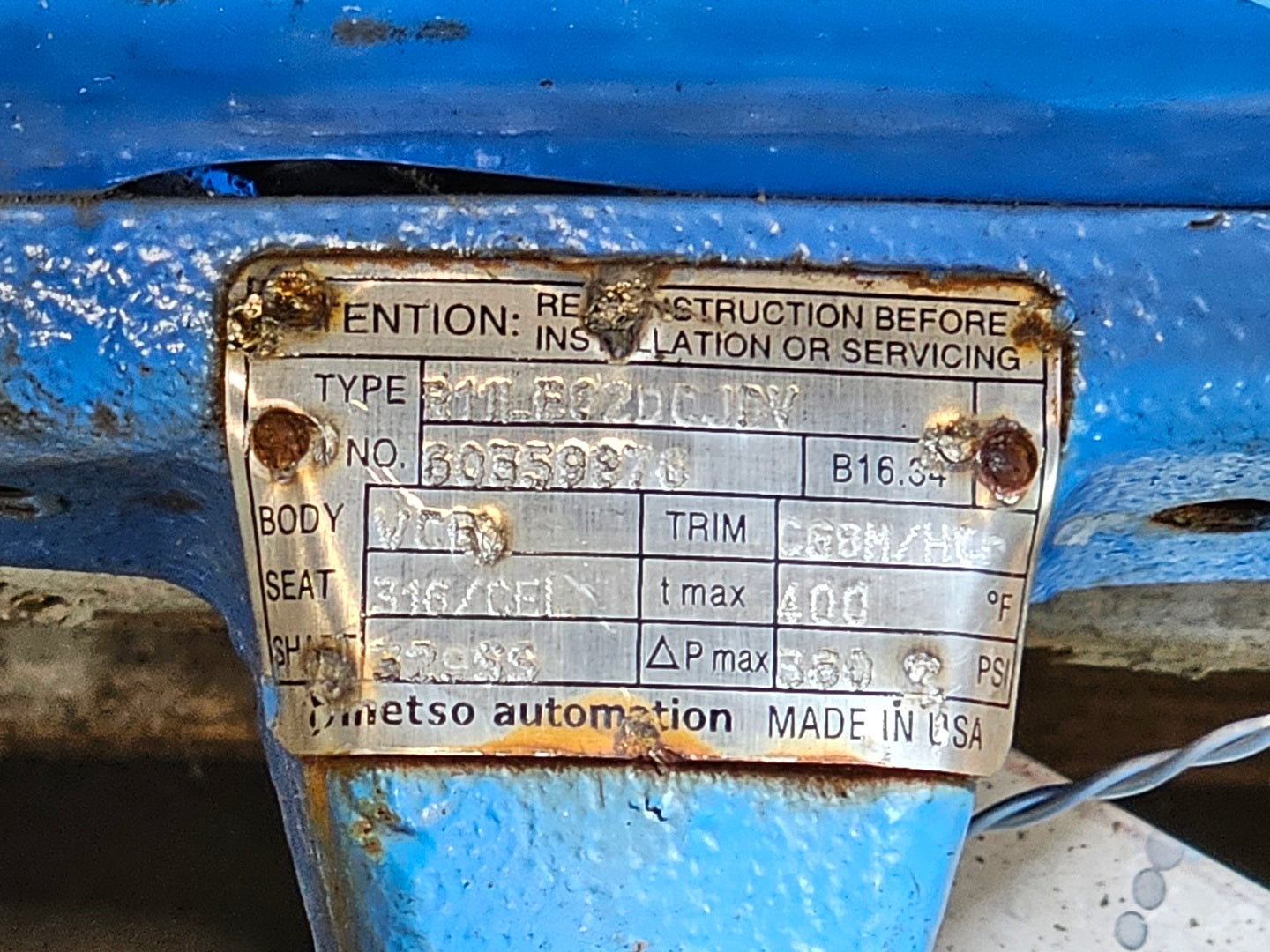

Valve family: R Series V-port segment valve

Valve type code: R11-BS2JDJJY

Valve serial number: 60859870

Valve operation: Quarter-turn rotary control

Valve body material: WCB, ASTM A216 WCB carbon steel

Maximum temperature: 400°F

Maximum differential pressure: 580 psi

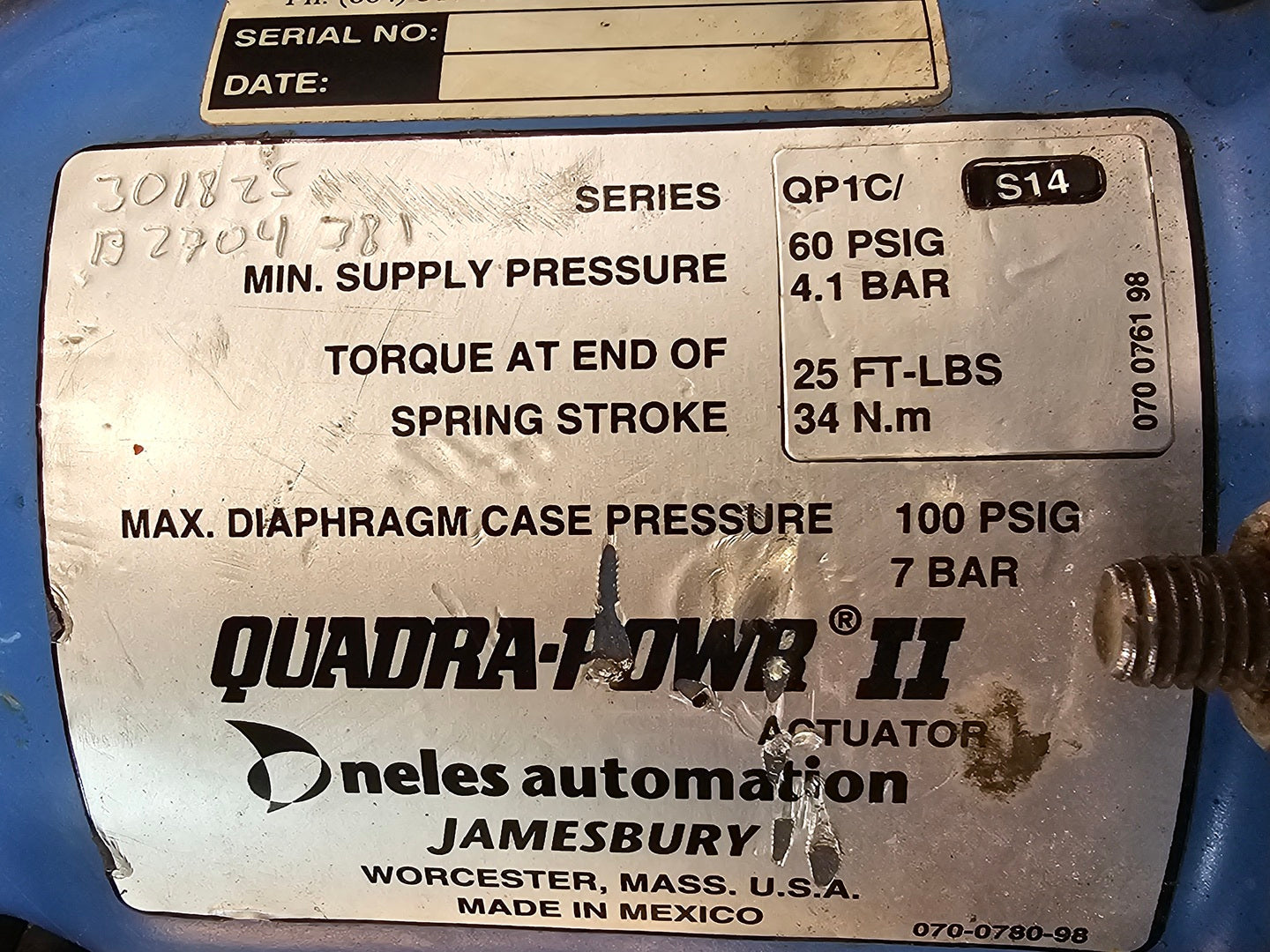

Actuator manufacturer: Neles Automation / Jamesbury

Actuator product line: Quadra-Powr II

Actuator series: QP1C / S14

Actuator configuration: Pneumatic diaphragm, spring-return rotary actuator

Minimum supply pressure: 60 psig / 4.1 bar

Torque at end of spring stroke: 25 ft-lb / 34 Nm

Maximum diaphragm case pressure: 100 psig / 7 bar

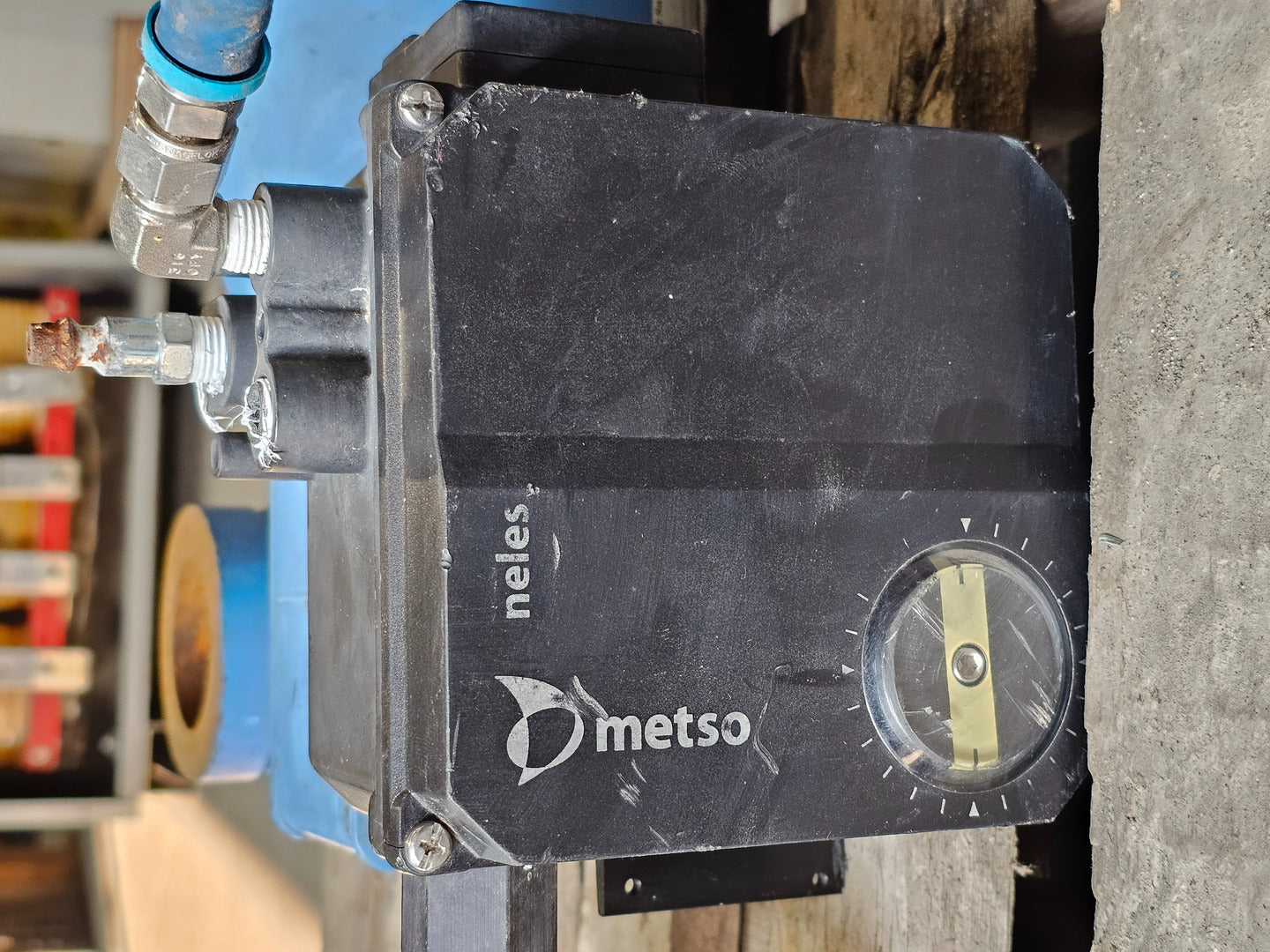

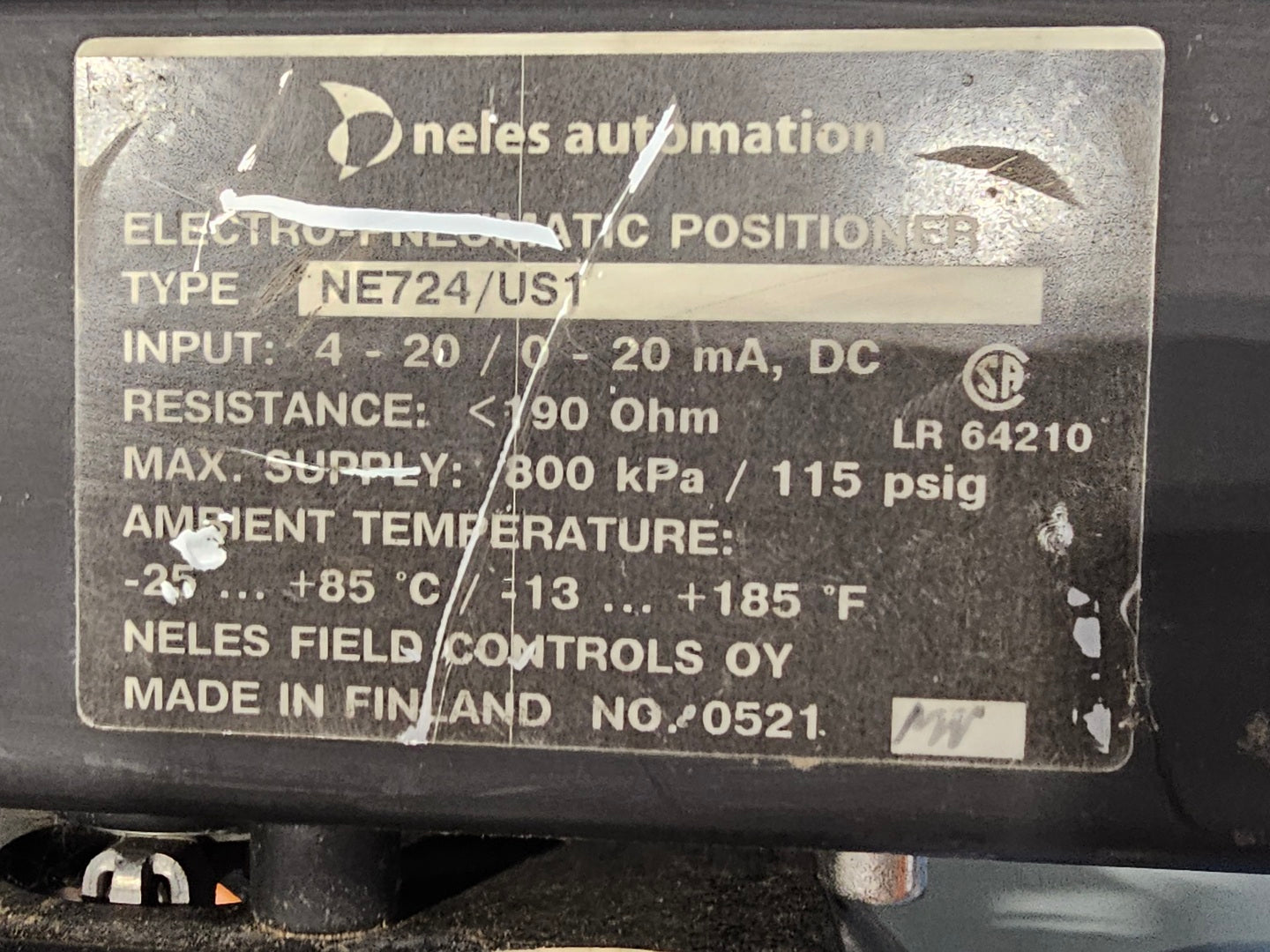

Positioner manufacturer: Neles Automation / Metso

Positioner type: NE724/US1

Positioner description: Electro-pneumatic positioner

Input signal: 4-20 mA or 0-20 mA DC

Input resistance: Less than 190 ohms

Maximum pneumatic supply: 800 kPa / 115 psig

Ambient temperature range: -25°C to +85°C / -13°F to +185°F
