Description

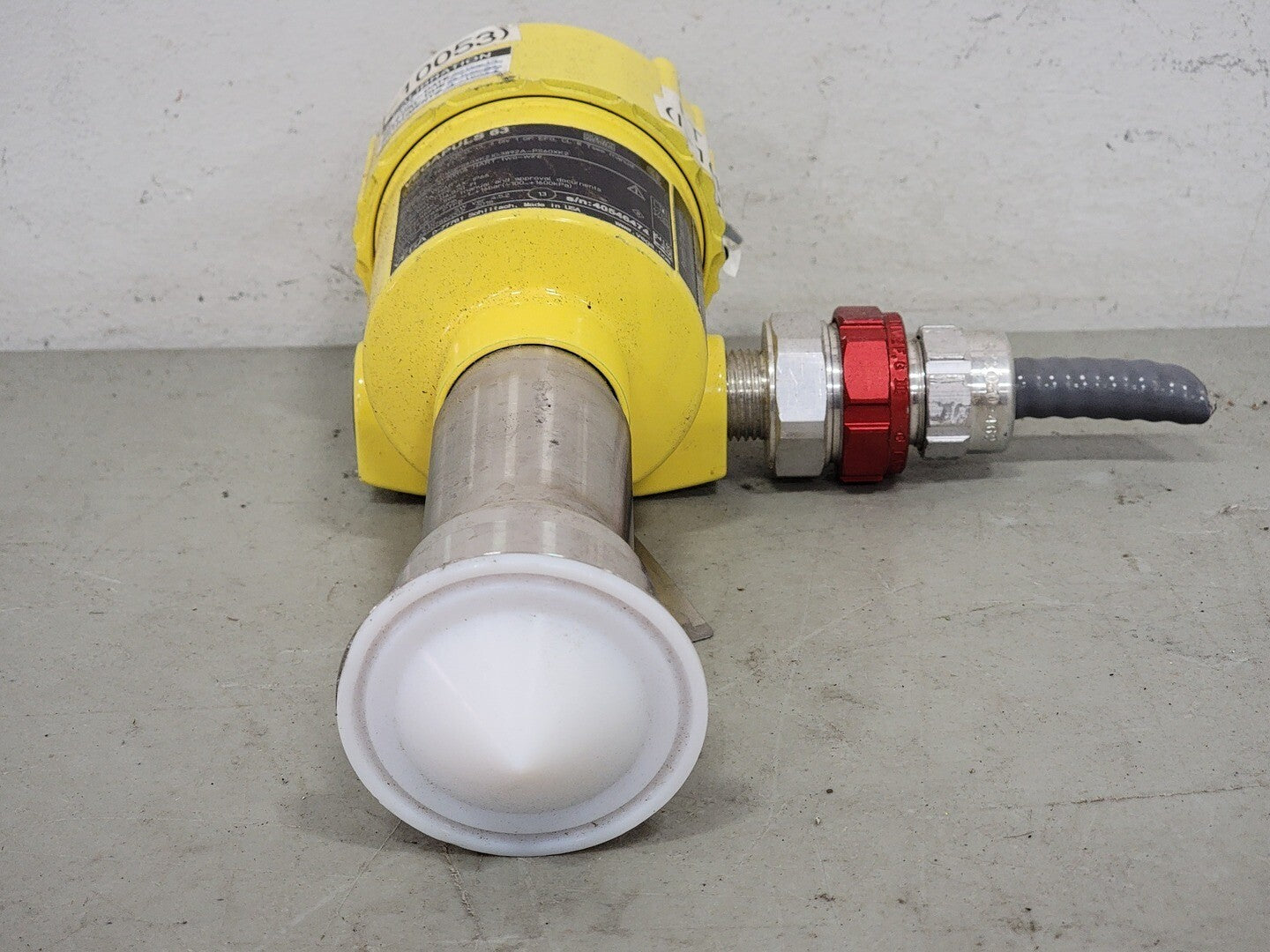

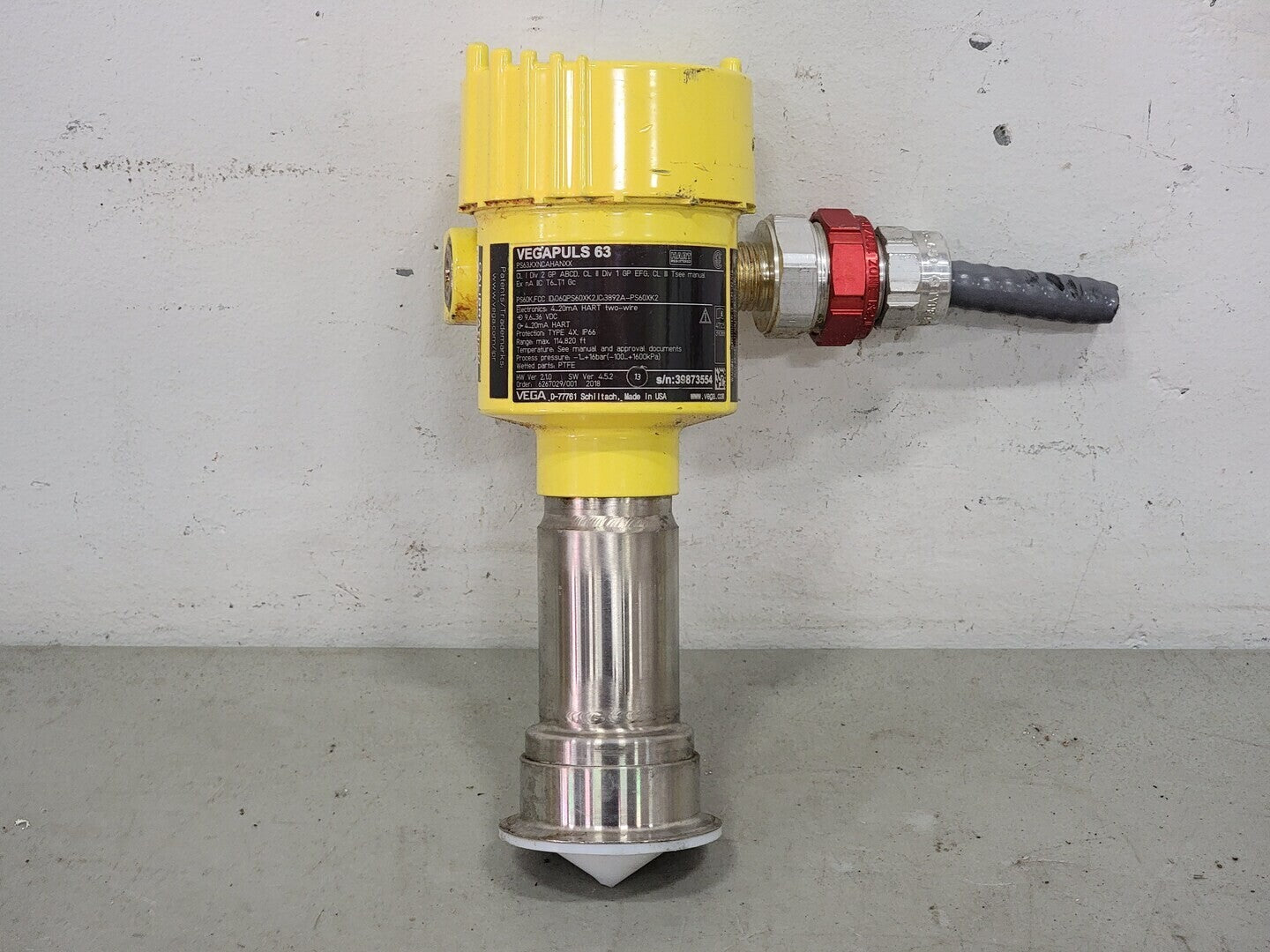

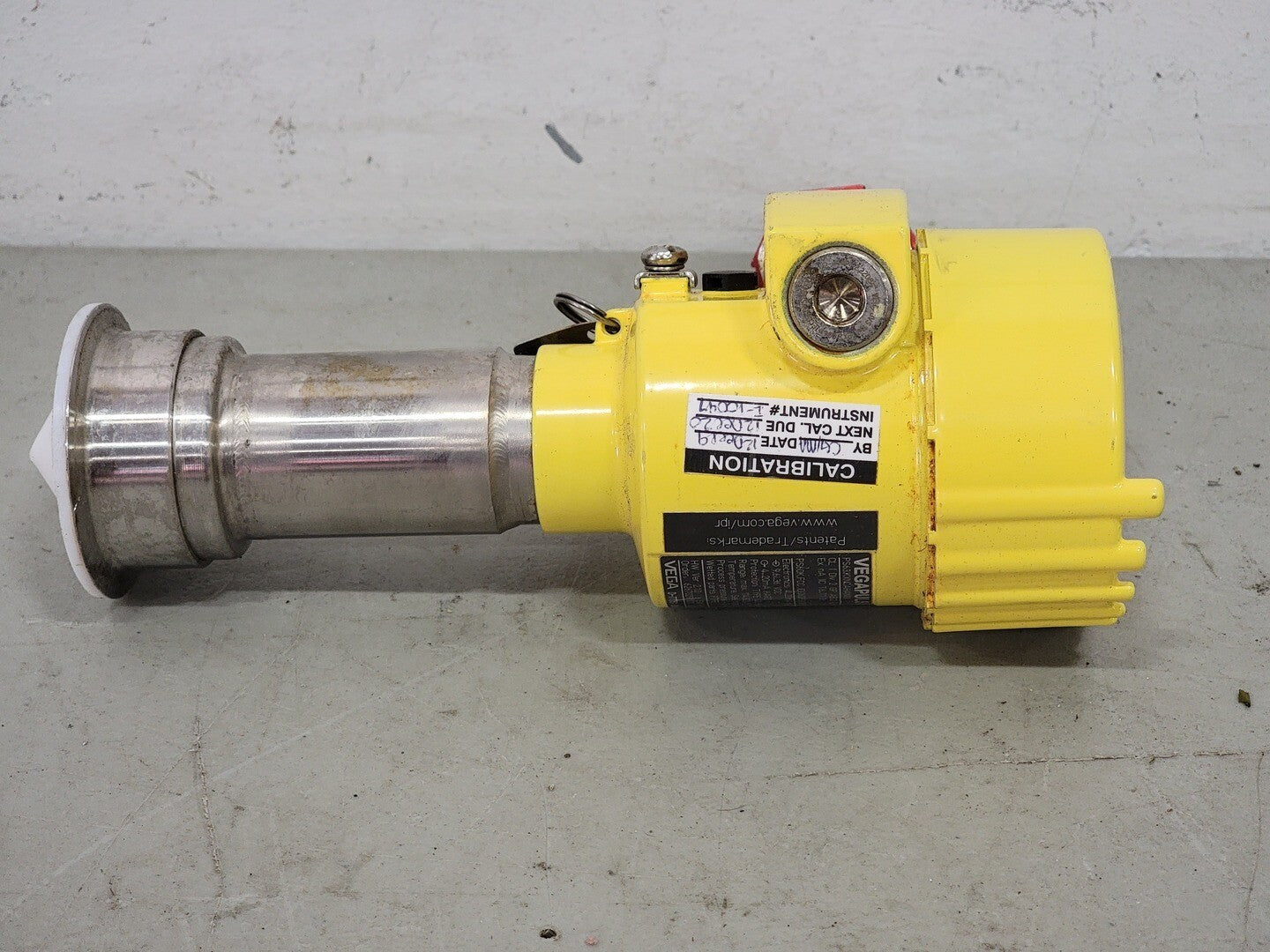

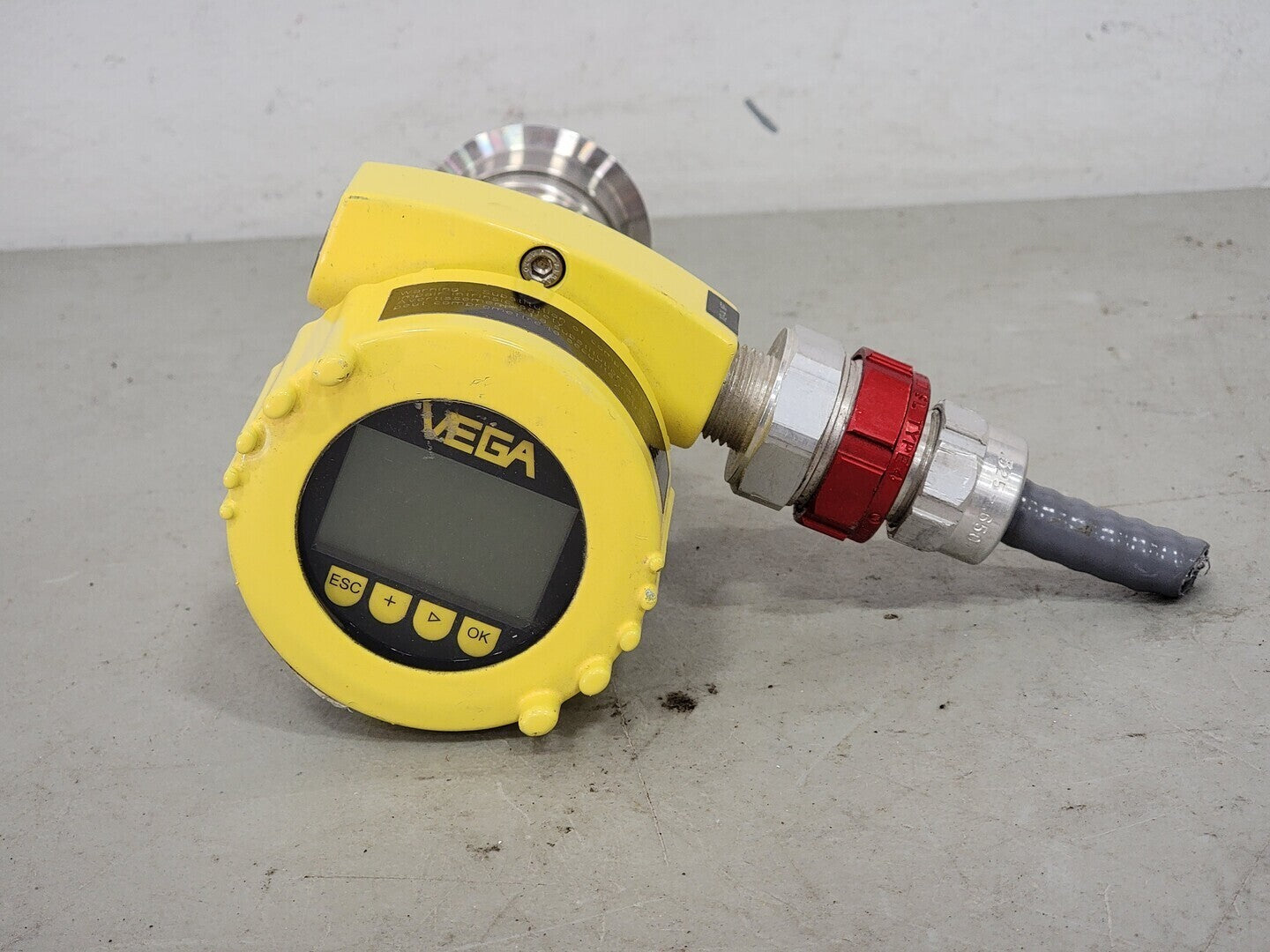

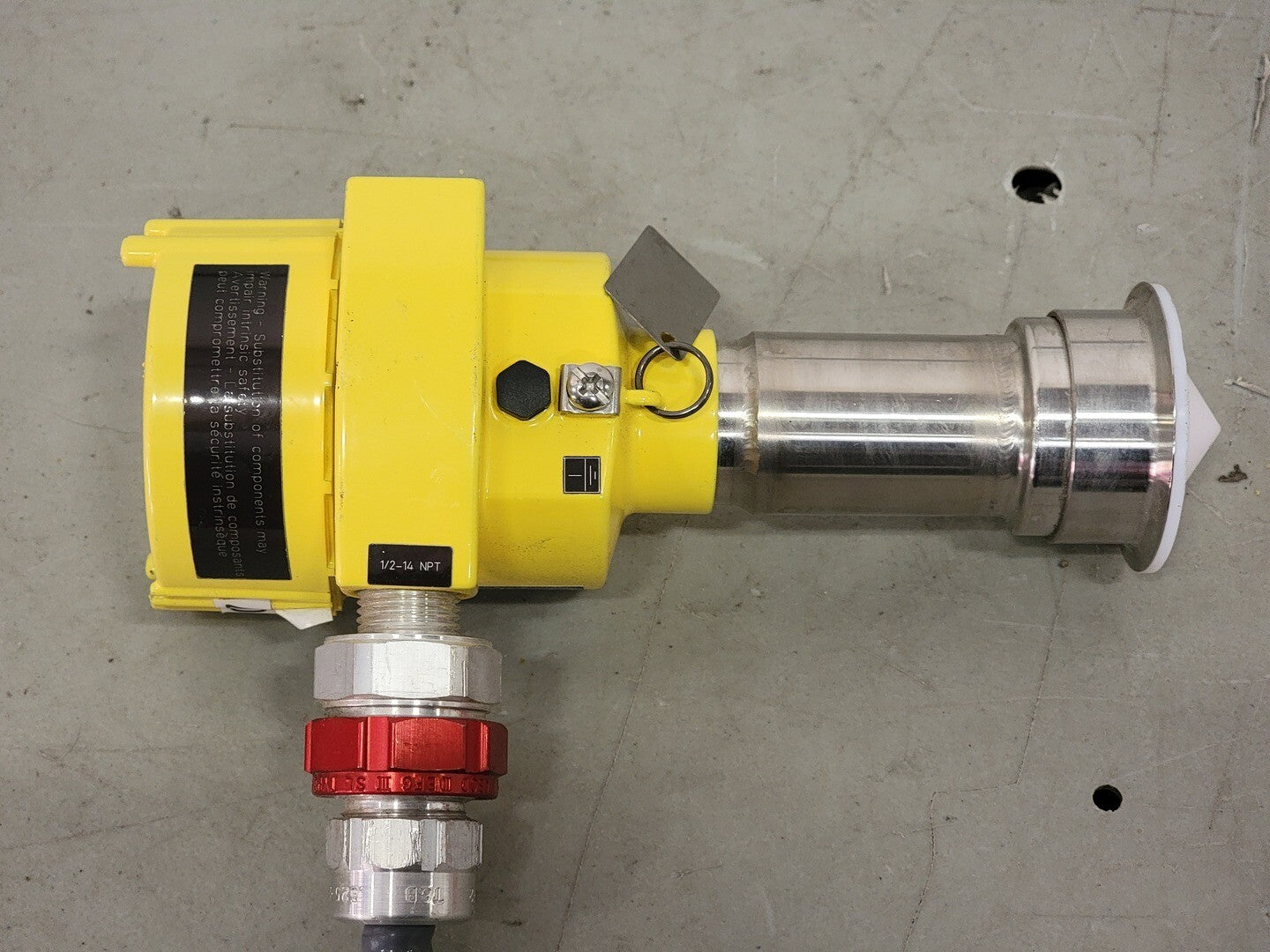

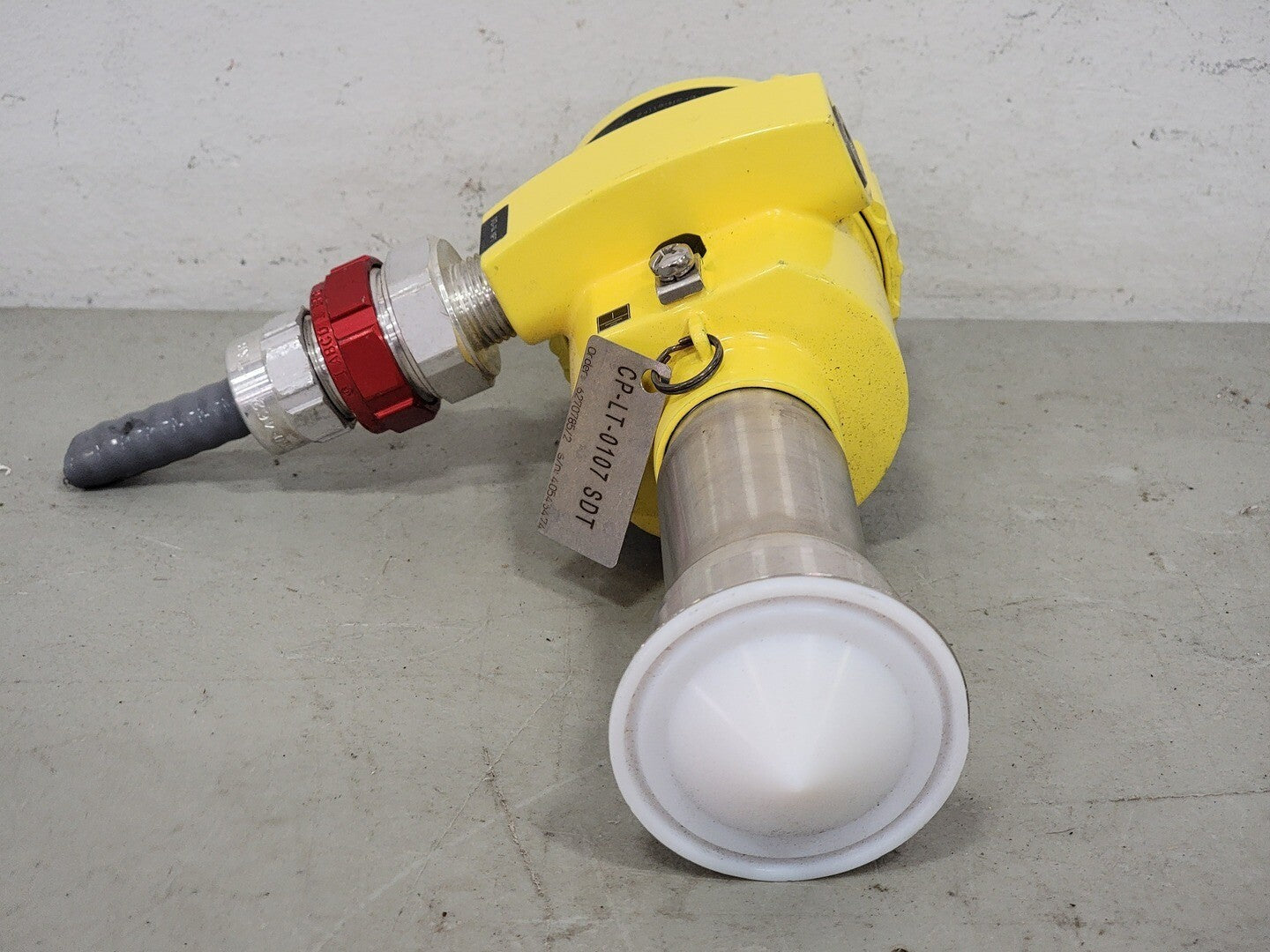

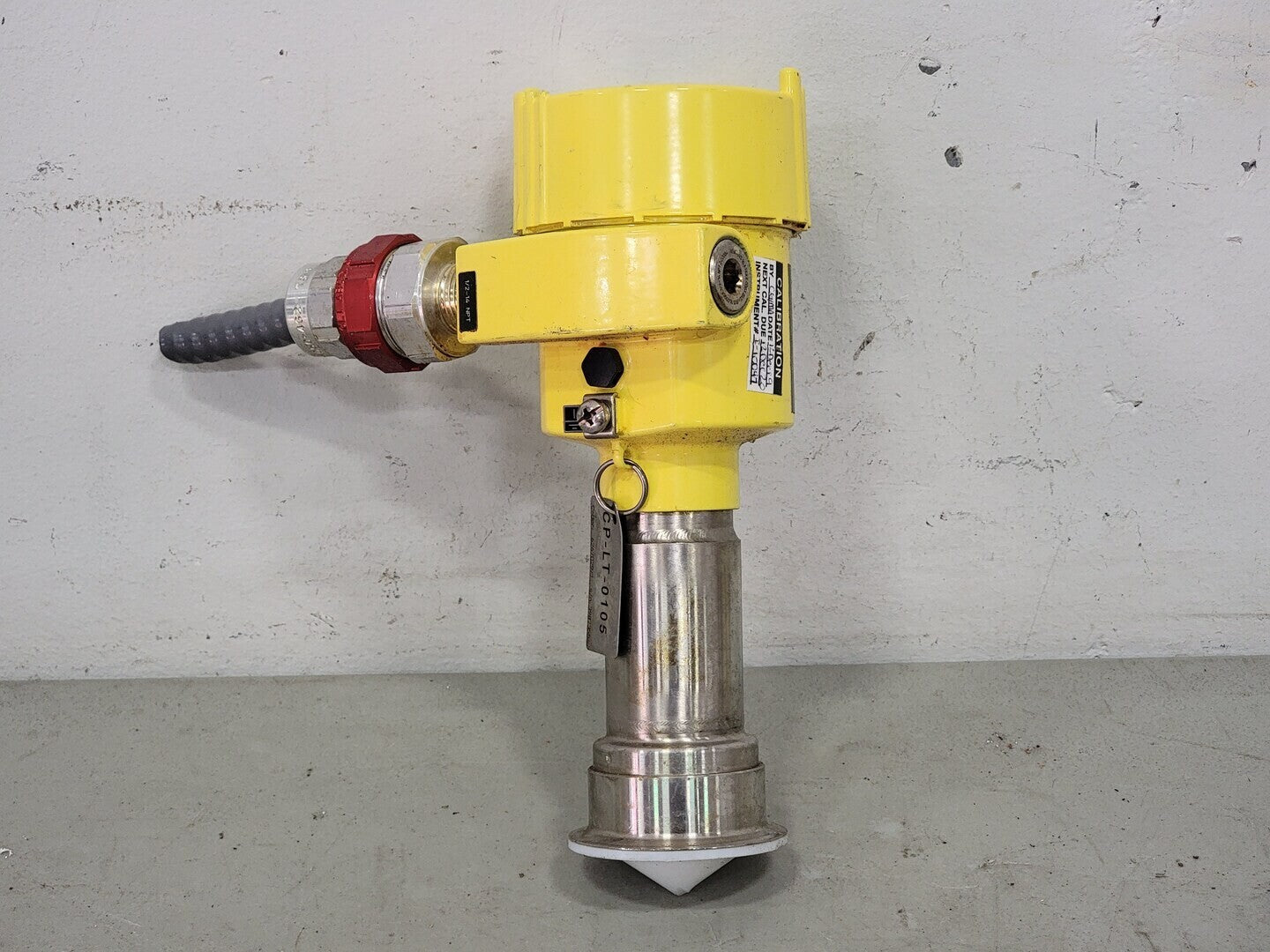

The Vegapuls 63 Radar Liquid Level Sensor, model PS63.KXNCAHANXX, is a versatile and durable sensor designed for accurately measuring liquid levels. It operates on a 4-20 mA HART two-wire system and has a wide input range of 9.6 - 36 VDC. With a maximum range of 114.820 ft and a process pressure tolerance of -100 to +1600 kPa, this sensor is suitable for various industrial applications. The wetted part is made of PTFE, ensuring compatibility with a range of liquids. The sensor is also designed with Type 4X, IP66 protection for reliable performance in harsh environments.
| Specifications | |
|---|---|
| Model | PS63.KXNCAHANXX |
| Year: | 2018 |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
|

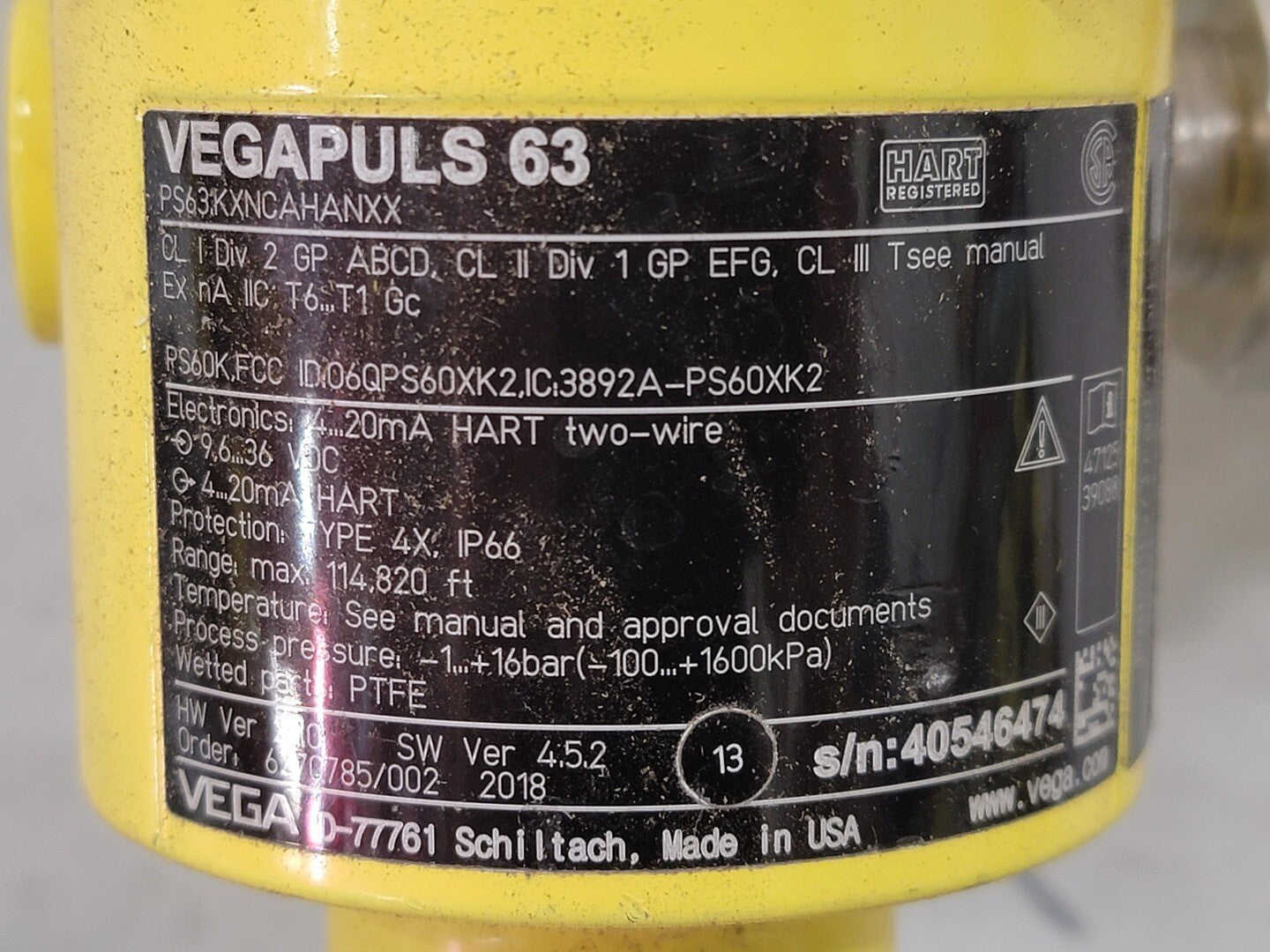

Electronics: 4-20 mA HART two-wire Input: 9.6 - 36 VDC Output: 4 - 20 mA HART Protection: Type 4X, IP66 Range: max. 114.820 ft Process Pressure: -100 to +1600 kPa Wetted Part: PTFE |
