Description
| Specifications | |
|---|---|

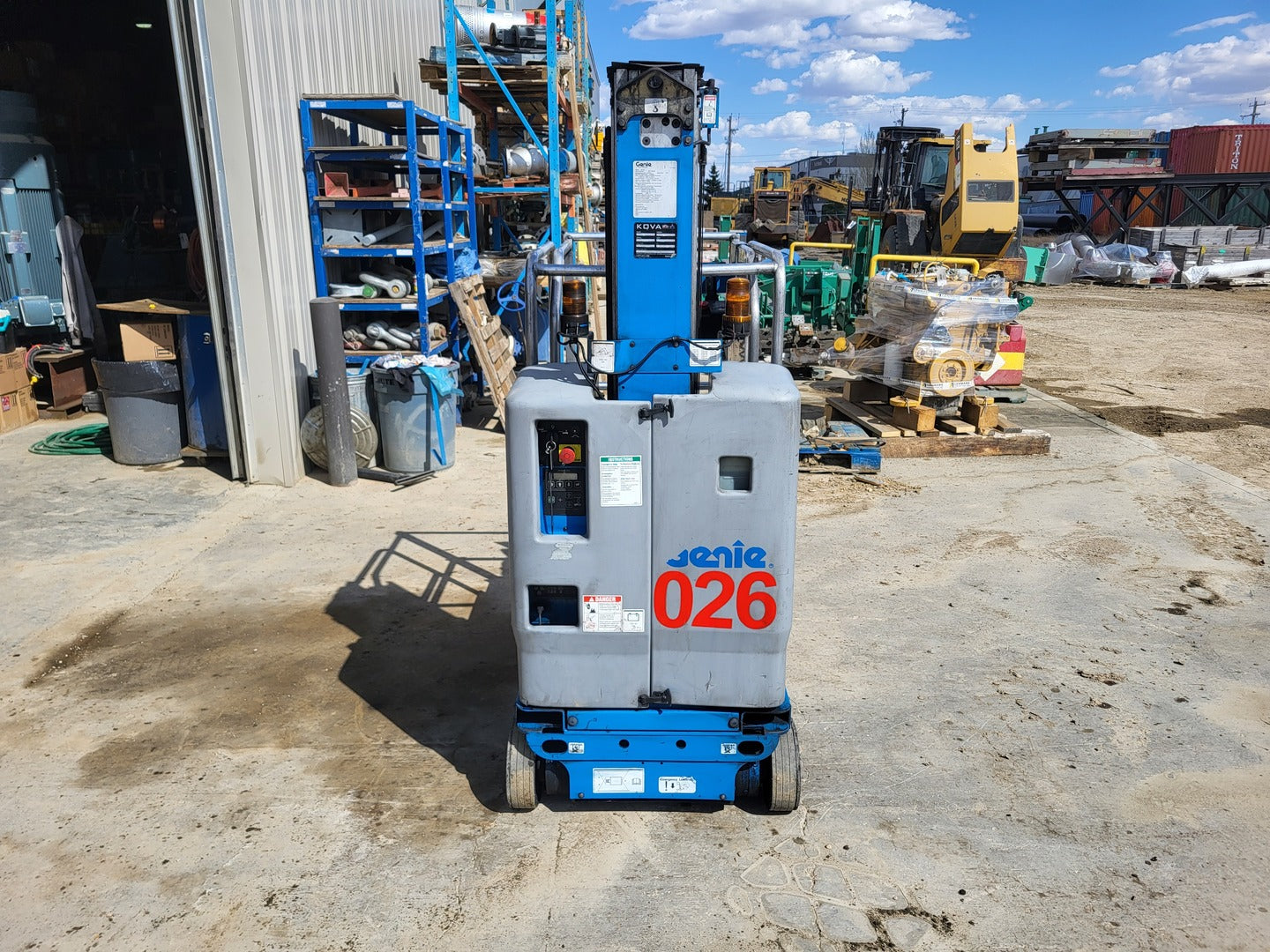

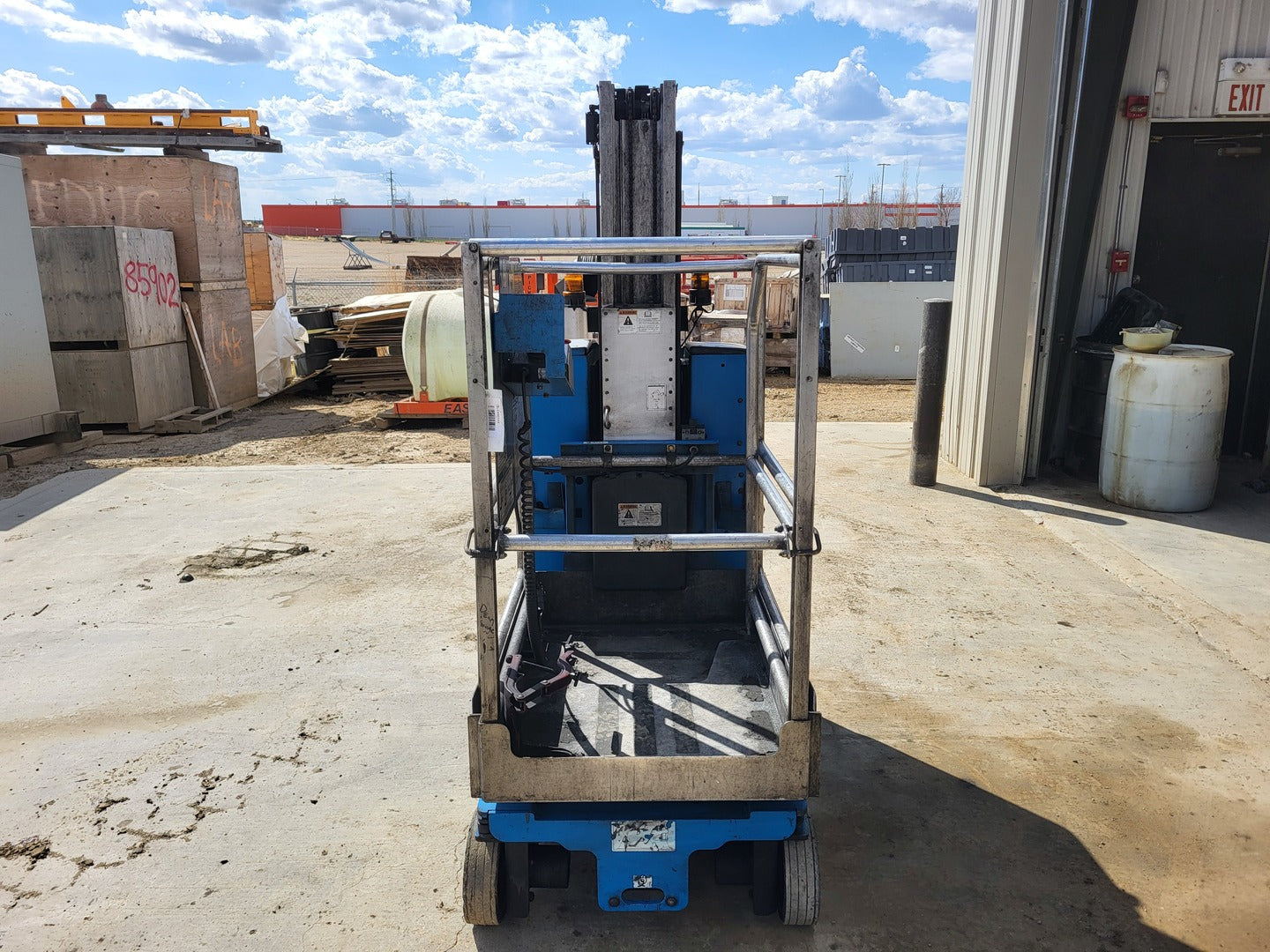

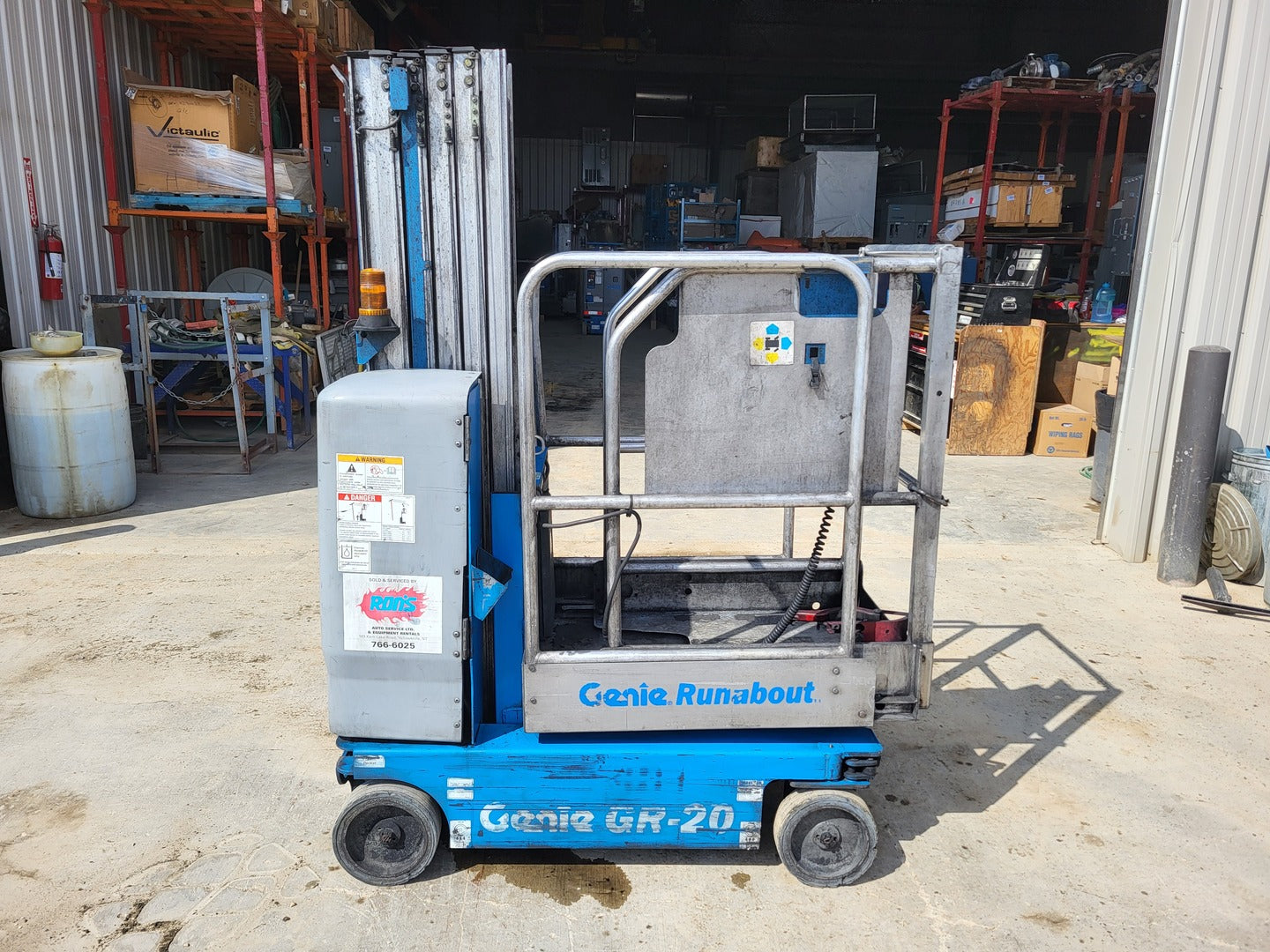

| Model | GR-20 |
| Year: | 2011 |

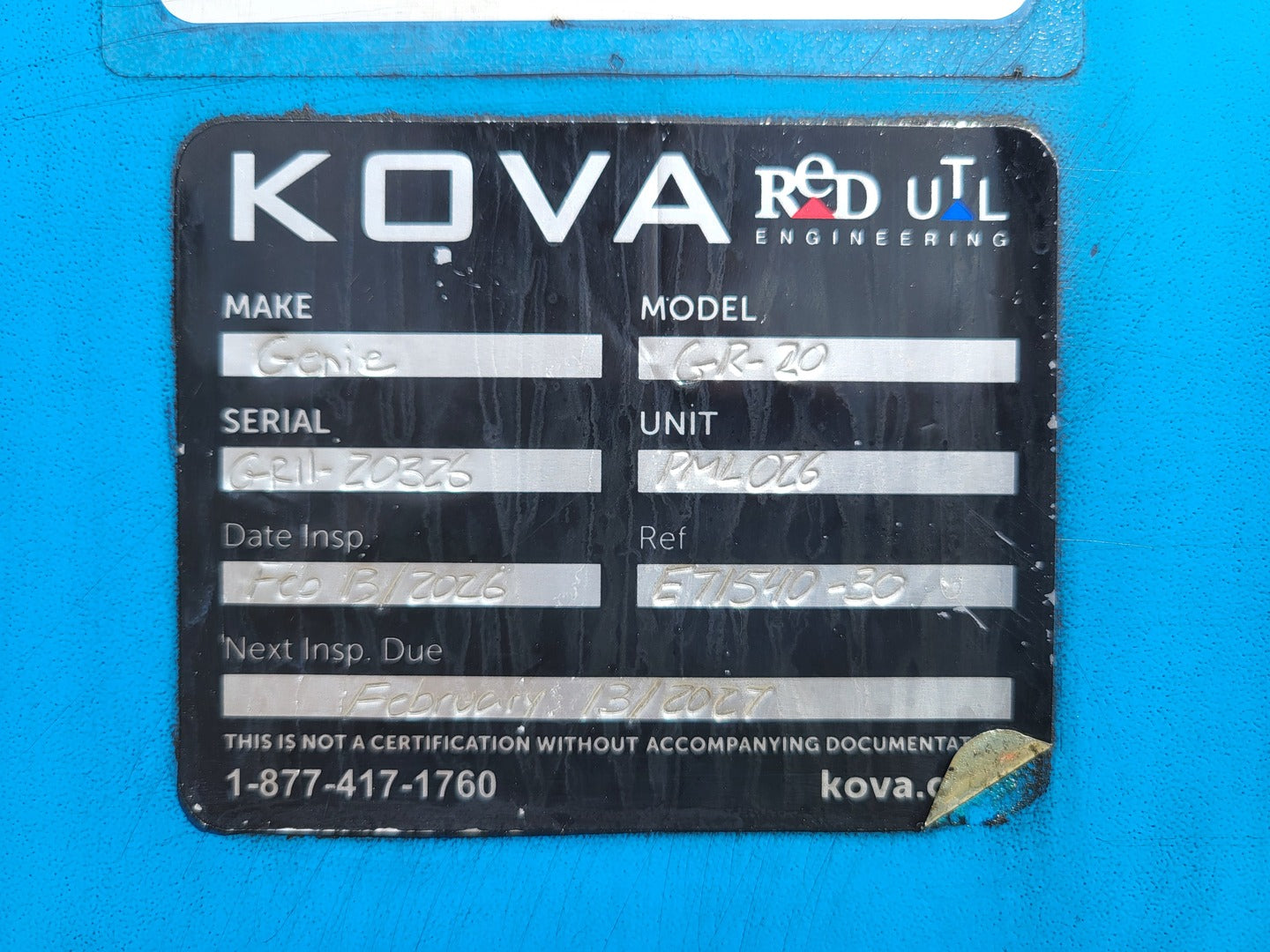

| S/N: | GR11-20326 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Max. Lift Height | 25' 9" |
| Max. Lift Capacity | 350 lb |
| Tires | Cushion |
| Fuel Type | Electric |
| Other Specifications |
|---|
|

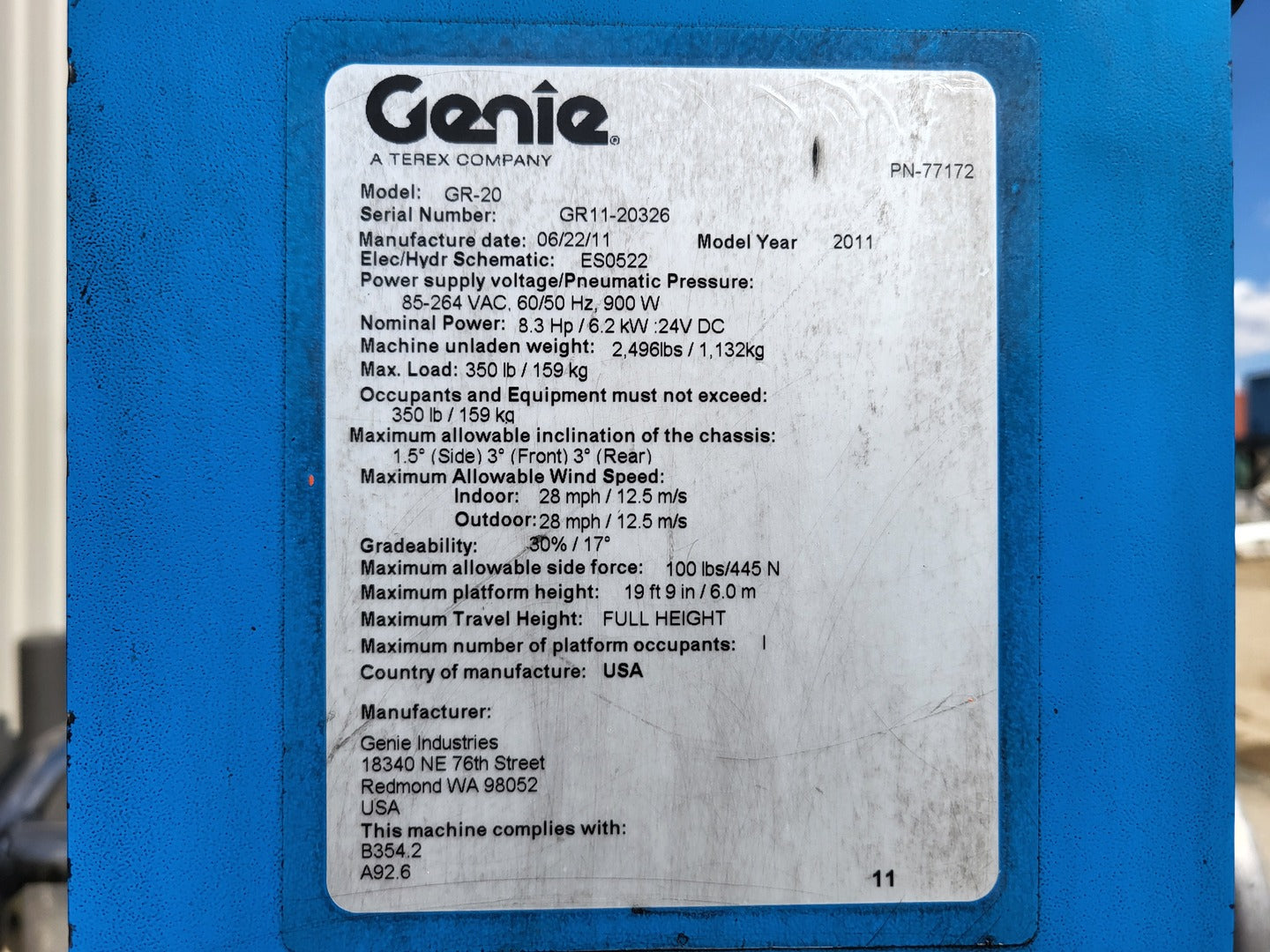

Working height max. - indoor: 25 ft 9 in // 8.02m Working height max. - outdoor: 21 ft 6 in // 6.70m Platform height max.- indoor: 19 ft 9 in // 6.02m Platform height max. - outdoor: 15 ft 9 in // 4.70m Platform dimensions (length x width) - Standard retracted: 35 x 29.5 in // 0.89 x 0.75m Platform dimensions (length x width) - Standard extended: 55 x 29.5 in // 1.4 x 0.75m Height - stowed: 6 ft 6 in // 1.98m Length- stowed: 4 ft 5 in // 1.35m Width: 2 ft 7.5 in // 0.80m Ground clearance (center): 2.5 in // 6 cm Maximum platform occupancy (in/out): 1/1 Lift capacity: 350 lb // 159 kg Lift capacity - extension deck extended: 250 lb // 113 kg Drive speed - stowed: 2.5 mph // 4.0 km/h Drive speed - raised: 0.5 mph // 0.8 km/h Gradeability: 30% Turning radius - inside: 0 in // 0 cm Turning radius - outside: 4 ft 4 in // 1.32 m Lifting speed - raise/lower: 24/21 sec Controls - proportional: 24V DC Tires - Solid non-marking: 10 x 3 x 8 in // 25 x 8 x 20 cm Tilt sensor activation (front to back/side to side): 3° / 1.5° Power system: 24V (4 x 6V 225Ah) Hydraulic tank capacity: 2.2 gal // 8.33 L Weight: 2,513 lb // 1,140 kg Tire load max.: 870 lb // 395 kg Tire contact pressure: 133.8 psi // 922.8 kPa Occupied floor pressure: 250.39 psf // 12.0 kPa Sound pressure level (ground workstation): <70 dBA Sound pressure level (platform workstation): <70 dBA Vibrations: <8 ft 2 in/s2 // <2.5 m/s2 |
